Full installation of Soffid 3 as test environment

Introduction

This guide describes all the steps required to install Soffid 3 as test environment.

We’re going to install it using Docker Compose, as it’s the simplest and quickest method for both installation and maintenance.

Prerequisites

• To have a Linux machine; Ubuntu 24 has been used for this tutorial.
• The Linux administrator user must have sudo privileges.


Step 1: Install Docker & Docker compose

The first step is to install Docker and Docker compose. Docker is the platform and compose is a tool that simplifies management.

1.1 Install docker

Install docker.

sudo apt-get update
sudo apt-get install docker.io
docker --version

1.2 Use docker without sudo

To use docker without sudo.

Command	Comment
sudo gedit /etc/group	Edit the file with your editor (gedit for this example)
docker:x:988:YOUR-USER	Add YOUR-USER at the end of the docker command without : at the end
logout	Log out from the ubuntu session
login	Log in into the ubuntu session
docker ps	Confirm that you do not need to use sudo with a docker command

1.3 Install docker compose

Install docker compose.

sudo apt-get install docker-compose-plugin
docker compose version

Step 2: Install Soffid 3

At this link, you can see the most commonly used Docker Compose commands: Docker compose commands

2.1 Test connectivity

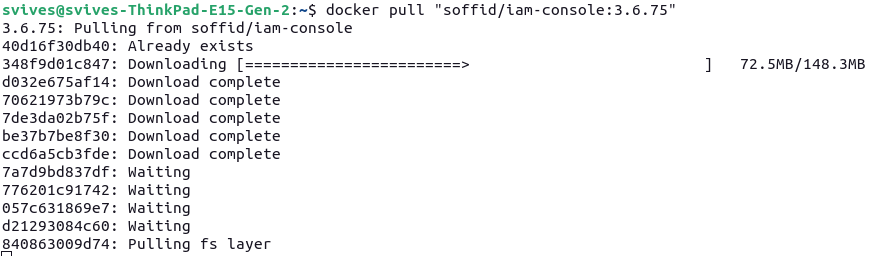

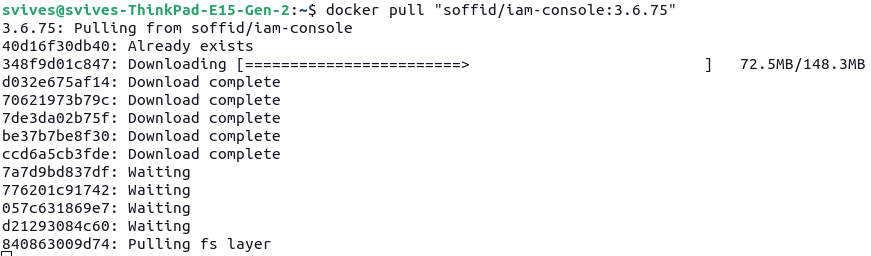

Test the connectivity with the Soffid 3 repository pulling an image (¡Do not use sudo with docker, it does not work!).

docker pull "soffid/iam-console:3.6.75"

2.2 Create the directory and file structure

Create a the new file for the docker compose with this directory structure.

cd
mkdir lab
cd lab
mkdir soffid3
cd soffid3
touch docker-compose.yaml

2.3 Configure the docker-compose.yaml

Use this content for the docker-compose.yaml file.

Change the XXXX password and YYYY password for your values.

services:

  mariadb:
    image: mariadb:11.4
    environment:
      MYSQL_ROOT_PASSWORD: XXXX
      MYSQL_DATABASE: soffid
      MYSQL_USER: soffid
      MYSQL_PASSWORD: YYYY
    healthcheck:
      test: "/usr/bin/mariadb --user=root --password=XXXX --execute \"SHOW DATABASES;\""
      interval: 2s
      timeout: 20s
      retries: 10
    command: --max_allowed_packet=128M --innodb_log_file_size=256M --character-set-server=utf8mb4 --collation-server=utf8mb4_general_ci
    networks:
      - network
    volumes:
      - mariadb_data:/var/lib/mysql

  console:
    image: soffid/iam-console:3.6.74
    environment:
      DB_URL: jdbc:mariadb://mariadb/soffid
      DB_USER: soffid
      DB_PASSWORD: YYYY
      SOFFID_TRUSTED_SCRIPTS: true
    networks:
    - network
    ports:
      - "8080:8080"
    volumes:
      - console_trust:/opt/soffid/iam-console-3/trustedcerts
      - console_conf:/opt/soffid/iam-console-3/conf
      - console_index:/opt/soffid/iam-console-3/index
    depends_on:
      mariadb:
        condition: service_healthy

  syncserver:
    image: soffid/iam-sync:3.6.47
    hostname: syncserver
    environment:
      SOFFID_PORT: 1760
      SOFFID_HOSTNAME: syncserver
      SOFFID_MAIN: yes
      DB_URL: jdbc:mysql://mariadb/soffid
      DB_USER: soffid
      DB_PASSWORD: YYYY
    networks:
      - network
    volumes:
      - sync_conf:/opt/soffid/iam-sync/conf
    depends_on:
      mariadb:
        condition: service_healthy

networks:
  network:
    name: netcompose
    driver: bridge

volumes:
  mariadb_data:
    name: soffid3_mariadbdata
  console_trust:
    name: soffid3_console_trustedcerts
  console_conf:
    name: soffid3_console_conf
  console_index:
    name: soffid3-console_index
  sync_conf:
    name: soffid3_sync_conf

2.4 Generate the containers

Generate the containers.

docker compose up -d

2.5 Publish the domains

We recommend using a local domain to access the Console, create new entries in:

• Linux /etc/hosts
• Windows C:\Windows\System32\drivers\etc\hosts

# Soffid 3 local
127.0.0.1 console.soffid3.local
127.0.0.1 syncserver.soffid3.local

2.6 Access to the Console

Follow these steps:

• Go to login page: http://console.soffid3.local:8080
• We have to wait until the login page will be prompted.

• User: admin / password: changeit (temporal for 24 hours).
• Fill the new password and save it to use it later!

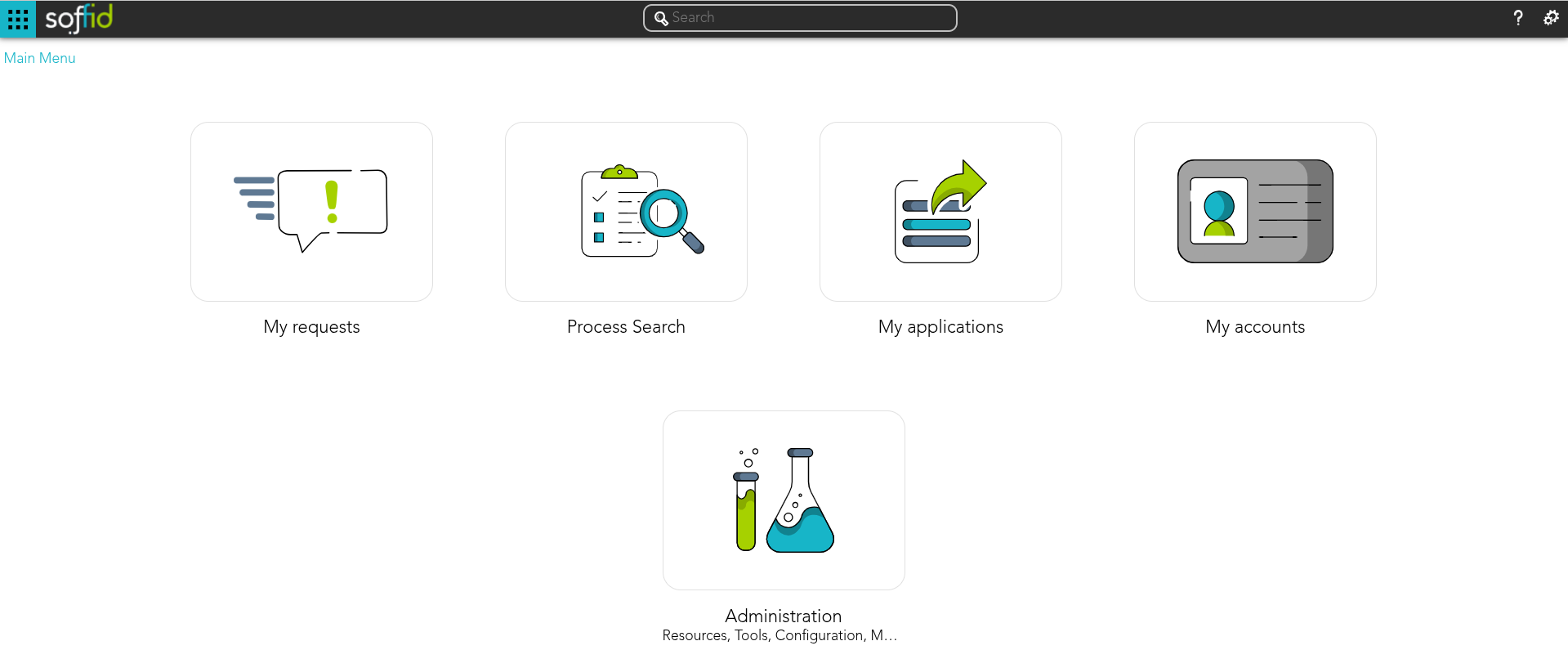

You will now see this page.
