Full installation of Soffid 4 as test environment

Introduction

This guide is only for Soffid users.

This guide describes all the steps required to install Soffid 4 as dev/test environment.

TheWe’re simplestgoing installationto isinstall it using Docker Compose, as it’s the simplest and quickest method for both installation and maintenance.

Prerequisites

Sources:

• https://bookstack.soffid.com/books/soffid-internal-documentation/page/installation-of-soffid-4-as-devtest-environment-for-soffid-admins

User prerequisites

• To have a Linux machine; Ubuntu 24 has been used for this tutorial.
• The Linux administrator user hasmust have sudo privileges.

• To have a Soffid useraccount. for the license activation step.

Soffid prerequisites

• Your Soffid user has to had a special role to download Soffid 4 images. from the marketplace.
• Your Soffid user has to hashad a Soffid 4 license. for the test environment.

Step 1: Docker & Docker compose

Sources:

• https://bookstack.soffid.com/books/soffid-internal-documentation/page/how-to-install-docker
• https://bookstack.soffid.com/books/soffid-internal-documentation/page/how-to-install-docker-compose
• https://bookstack.soffid.com/books/soffid-internal-documentation/page/docker-compose-commands#bkmrk-use-docker-without-s

The first step is to install Docker and Docker compose. Docker is the platform and compose is a tool that simplifies management.

1.1 Install docker

Install docker.

sudo apt-get update
sudo apt-get install docker.io
docker --version

1.2 Use docker without sudo

To use docker without sudo.

1.3 Install docker compose

sudo apt-get install docker-compose-plugin
docker compose version

Soffid 4 docker registry

Sources:

• https://cloud.google.com/sdk/docs/install?hl=es-419#deb

Soffid2: 4 has transitioned from Docker Hub to Google Cloud Artifact Registry for image distribution. To successfully downloadInstall Soffid 4 images,

At this link, you mustcan completesee the followingmost configurationcommonly steps.

InstallDocker andCompose configurecommands: gcloudDocker cli

sudo apt-get install ca-certificates gnupg curl
curl https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo gpg --dearmor -o /usr/share/keyrings/cloud.google.gpg
echo "deb [signed-by=/usr/share/keyrings/cloud.google.gpg] https://packages.cloud.google.com/apt cloud-sdk main" | sudo tee -a /etc/apt/sources.list.d/google-cloud-sdk.list
sudo apt-get update && sudo apt-get install google-cloud-cli

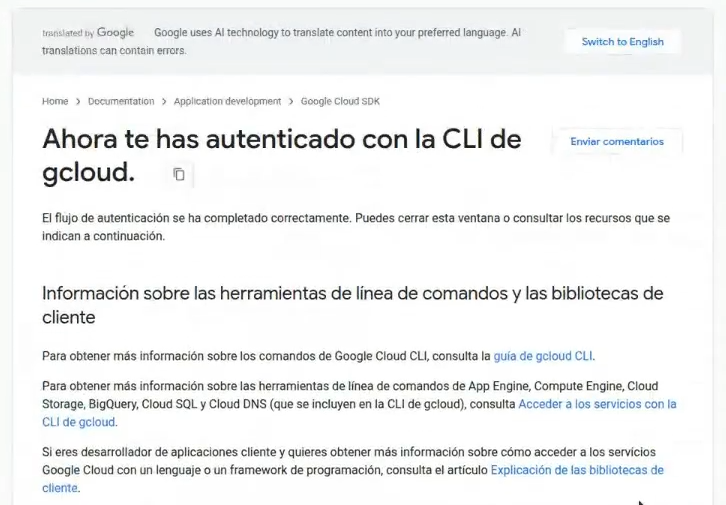

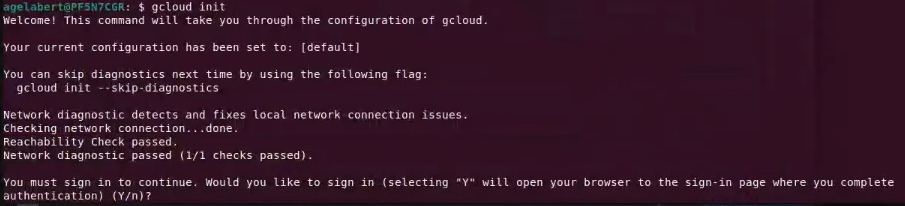

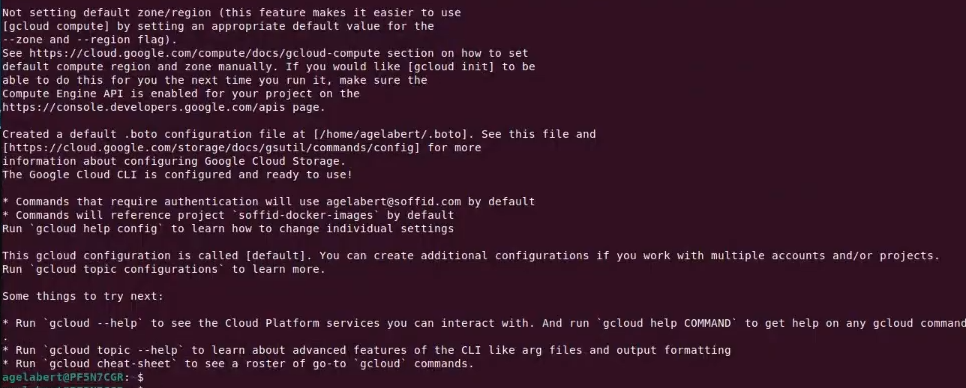

gcloud init

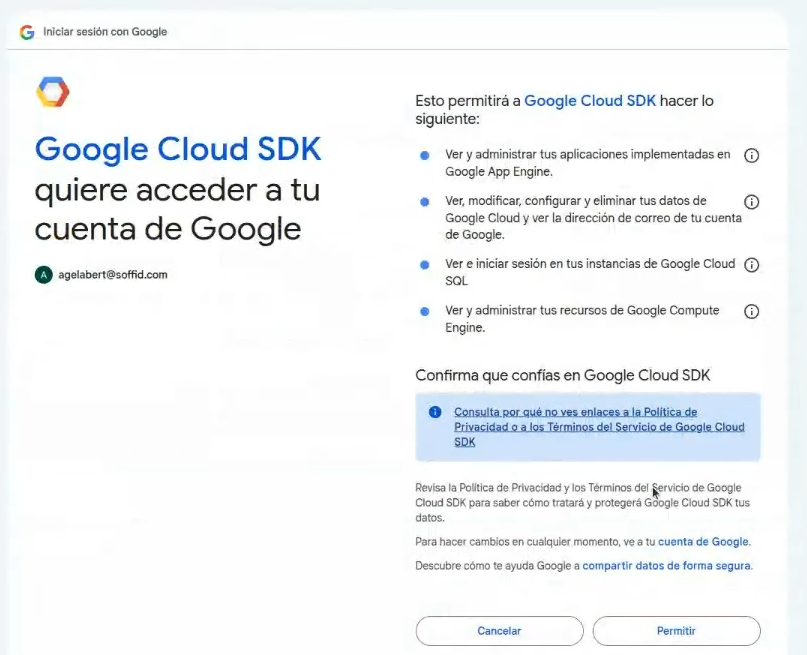

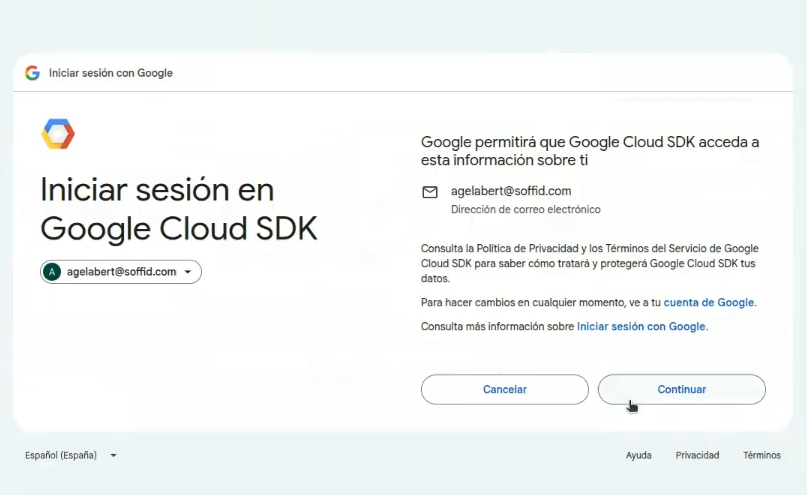

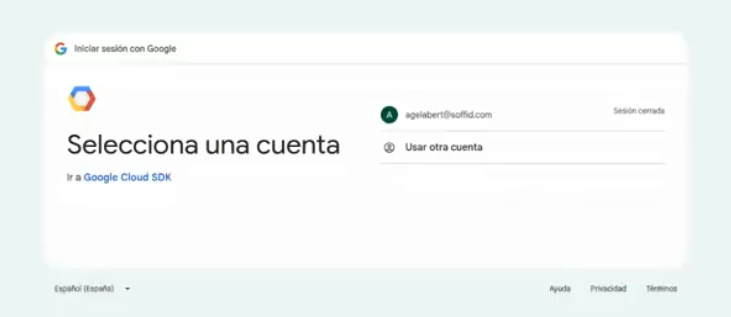

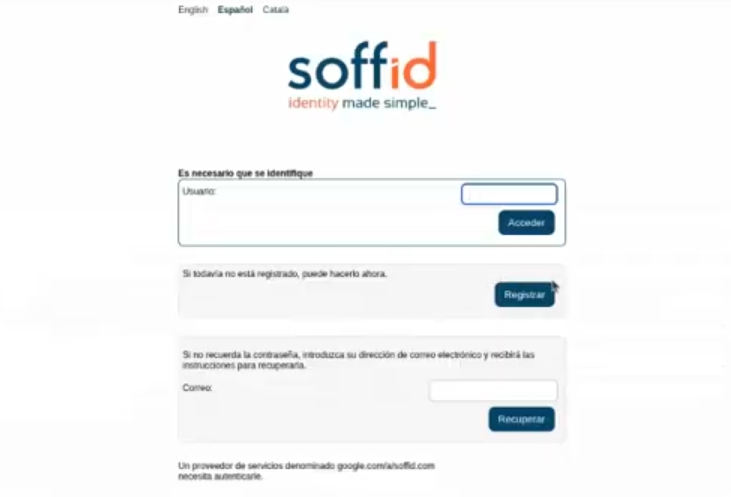

 Sign in with your Soffid account

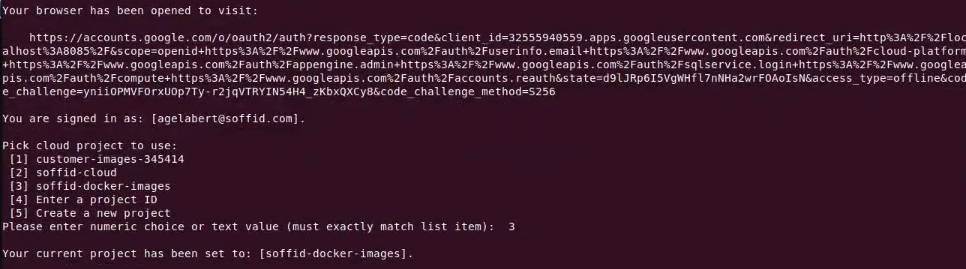

Select the project: soffid-docker-images

commands

Register2.1 the domain

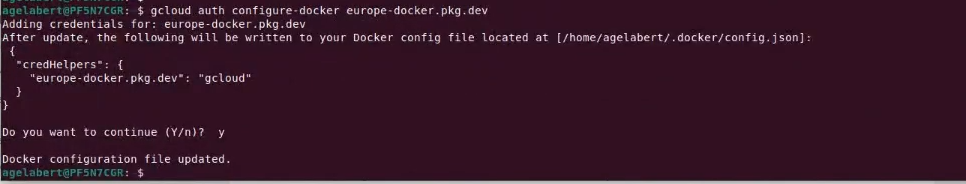

gcloud auth configure-docker europe-docker.pkg.dev

Test de configurationconnectivity

Test the configurationconnectivity with the Soffid 4 repository pulling an image (¡Do not use sudo with docker, it does not work!).

docker pull "europe-docker.pkg.dev/soffid-docker-images/private/iam-console:4.0.0"

Install

2.2 Soffid 4

Sources:

• https://bookstack.soffid.com/books/installation/page/installing-soffid

At this link, you can seeCreate the mostdirectory commonlyand usedfile Docker Compose commands: Docker compose commands

Install Soffid 4 with docker composestructure

Create a the new file for the docker compose.compose with this directory structure.

cd
mkdir lab
cd lab
mkdir soffid4
cd soffid4
touch docker-compose.yaml

2.3 Configure the docker-compose.yaml

Use this content for the docker-compose.yaml file.

Change the XXXX password and YYYY password for your values.

services:

  mariadb:
    image: mariadb:11.4
    environment:
      MYSQL_ROOT_PASSWORD: XXXX
      MYSQL_DATABASE: soffid
      MYSQL_USER: soffid
      MYSQL_PASSWORD: YYYY
    healthcheck:
      test: "/usr/bin/mariadb --user=root --password=XXXX --execute \"SHOW DATABASES;\""
      interval: 2s
      timeout: 20s
      retries: 10
    command: --max_allowed_packet=128M --innodb_log_file_size=256M --character-set-server=utf8mb4 --collation-server=utf8mb4_general_ci
    ports:
      - "3306:3306"
    networks:
      - network
    volumes:
      - mariadb_data:/var/lib/mysql

  console:
    image: europe-docker.pkg.dev/soffid-docker-images/private/iam-console:4.0.58
    environment:
      DB_URL: jdbc:mariadb://mariadb/soffid
      DB_USER: soffid
      DB_PASSWORD: YYYY
      JAVA_OPT: -Xmx4096m
    ports:
      - 8080:8080
      - 8443:8443
    networks:
    - network
    healthcheck:
      test: bash -c "(echo 'GET /soffid/anonymous/logo.svg HTTP/1.1' >&0; echo >&0; cat >&2;) <> /dev/tcp/localhost/8080"
      interval: 10s
      timeout: 20s
      retries: 10
      start_period: 40s
    volumes:
      - console_trust:/opt/soffid/iam-console-4/trustedcerts
      - console_conf:/opt/soffid/iam-console-4/conf
      - console_index:/opt/soffid/iam-console-4/index
    depends_on:
      mariadb:
        condition: service_started

  syncserver:
    image: europe-docker.pkg.dev/soffid-docker-images/private/iam-sync:4.0.35
    hostname: syncserver
    environment:
      SOFFID_PORT: 1760
      SOFFID_HOSTNAME: syncserver.network
      SOFFID_MAIN: yes
      DB_URL: jdbc:mysql://mariadb/soffid
      DB_USER: soffid
      DB_PASSWORD: YYYY
    ports:
      - 1760:1760
      - 1443:1443
    networks:
      - network
    volumes:
      - sync_conf:/opt/soffid/iam-sync/conf
    depends_on:
      mariadb:
        condition: service_started

networks:
  network:
    name: network
    driver: bridge

volumes:
  mariadb_data:
    name: soffid4_mariadbdata
  console_trust:
    name: soffid4_console_trustedcerts
  console_conf:
    name: soffid4_console_conf
  console_index:
    name: soffid4_console_index
  sync_conf:
    name: soffid4_sync_conf

2.4 Generate the containers

Generate the containers.

docker compose up -d

2.5 Access to the Console

Follow these steps:

• Go to login page: http://localhost:8080

• We have to wait until the login page will be prompted.

• Accept the Update button.

• User: admin / password: changeit (temporal for 24 hours).

• Fill the new password and save it to use it later!

Now you will see this page.

Step 3: Configure SSL access

Sources:

• https://bookstack.soffid.com/books/soffid-internal-documentation/page/how-to-create-an-self-signed-certificate-with-openssl

To correctly validate the new license, the Soffid Console must be SSL-enabled, it has to be open with the https protocol.

Publish the domains

If you have a local environment, create new entries in /etc/hosts (Linux) or C:\Windows\System32\drivers\etc\hosts (Windows).

# Soffid 4 local
127.0.0.1 console.soffid4.local
127.0.0.1 syncserver.soffid4.local

Generate a self-signed certificate (pfx).

TODO

Use 12345678 for all requiered passwords.

sudo openssl genrsa -aes256 -out console.soffid4.local.key
sudo openssl req -x509 -days 1000 -new -key console.soffid4.local.key -out console.soffid4.local.pem
sudo openssl pkcs12 -export -in console.soffid4.local.pem -inkey console.soffid4.local.key -out console.soffid4.local.pfx

Copy this certificate in the console container.

sudo docker compose cp console.soffid4.local.pfx console:/opt/soffid/iam-console-4/trustedcerts

Enter the container, generate the jks file and configure it in the server.xml.

• https://bookstack.soffid.com/books/installation/page/configure-tls-for-iam-console-153

Publish the new port in docker compose and regenerate.

  consoleversion4:
...
    ports:
      - "8088:8080"
      - "8443:8443"

Update the system:

docker compose up -d

Connect to the new URL:

• https://console.soffid4.local:8443

Apply the license

When accessing the Soffid Console for the first time, you will need to apply a licence that the Soffid team will have created for you beforehand. Check this link:

• https://bookstack.soffid.com/books/soffid-4-reference-guide/page/license-and-plugin#bkmrk-first-access-to-soff

To apply the license follow these steps:

• Log into the Soffid Console
• Go to the "License and plugin" page
• You will not have an active license
• Click the "Manage license" button
• Log in with your new Soffid account received from Soffid
• Select your new license
• Accept the conditions

Finally you will have an active license and access to all pages
