Sync server monitoring
Description
Soffid provides a monitoring functionality to consult all the information of the different agents and the status of each one of them and the amount of tasks assigned. Consequently, it allows diagnosing possible incidents in a quick and easy way.
This option allows you to manage all the options related to the tasks created according to the configuration of each of the agents.
Screen overview
Related objects
Standard attributes

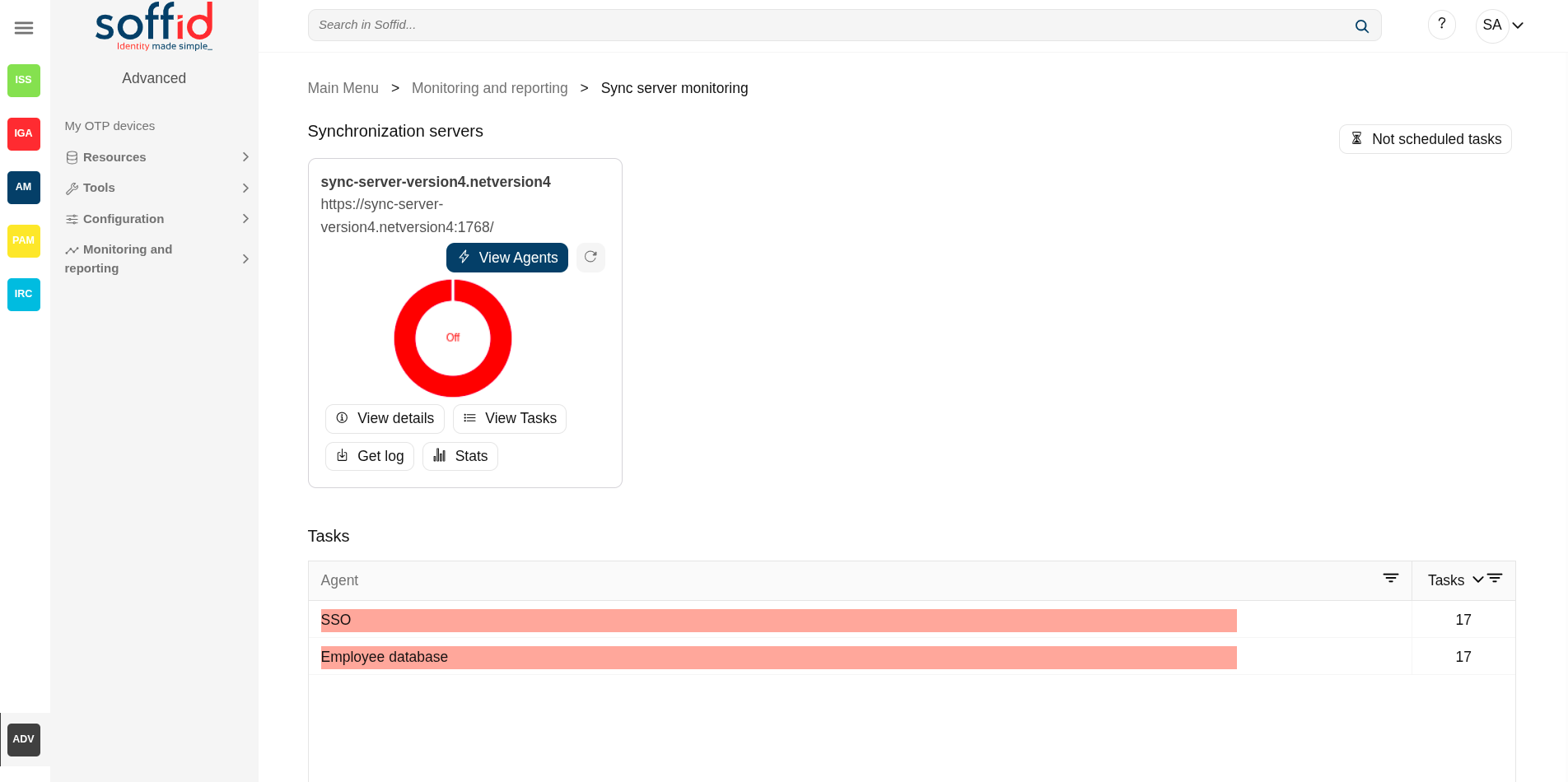

SyncSynchronization serverservers
Shows a list with the URL of all the sync servers that you have configured and the options to perform for every sync server.
💻 Image

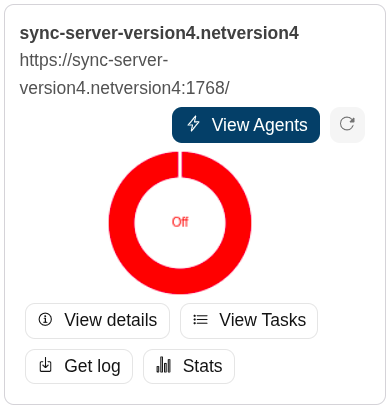

AgentSync Statusserver status
The graph of agent status shows the number of agents connected (green light) and the number of agents disconnected (red light). By clicking on the captions you can select if you want to show only the connected agents, only the disconnected agents, or both agents.
💻 Image

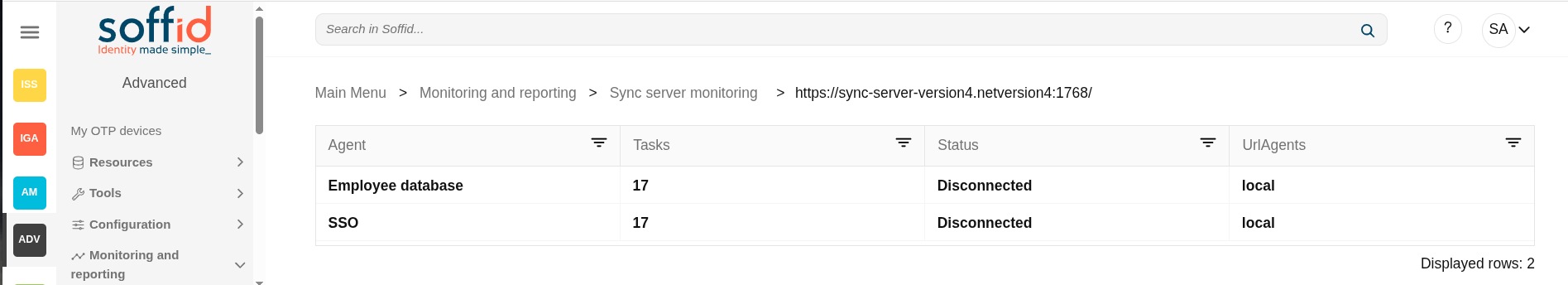

View Agents
Allows you to access a new window with the information of every single agent. That page shows a list with the information about Agent, Number of the pending tasks, the Status, and the URL of the agent.
If you click one of the agents, Soffid will display all the pending tasks for that agent. If you click on one pending task, you can view the details of that task and you could perform the actions available for that depending on your permissions.
💻 Image

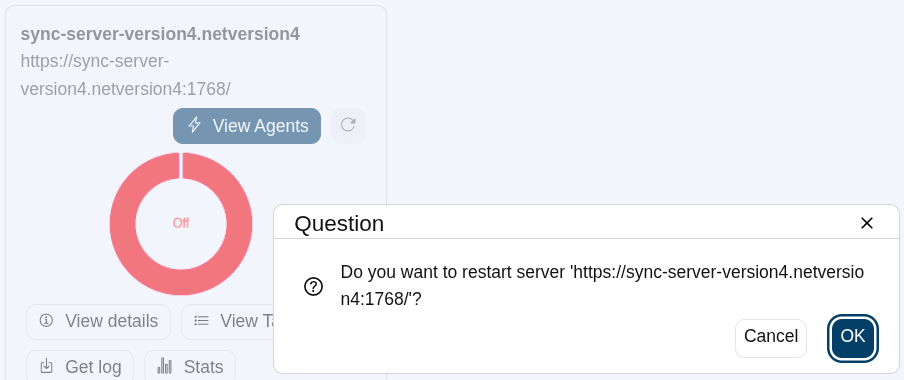

Restart server
Allows you to restart the synchronization server that hosts any agent. Soffis will ask for your confirmation before performing that action. If you confirm, the server will be restarted.

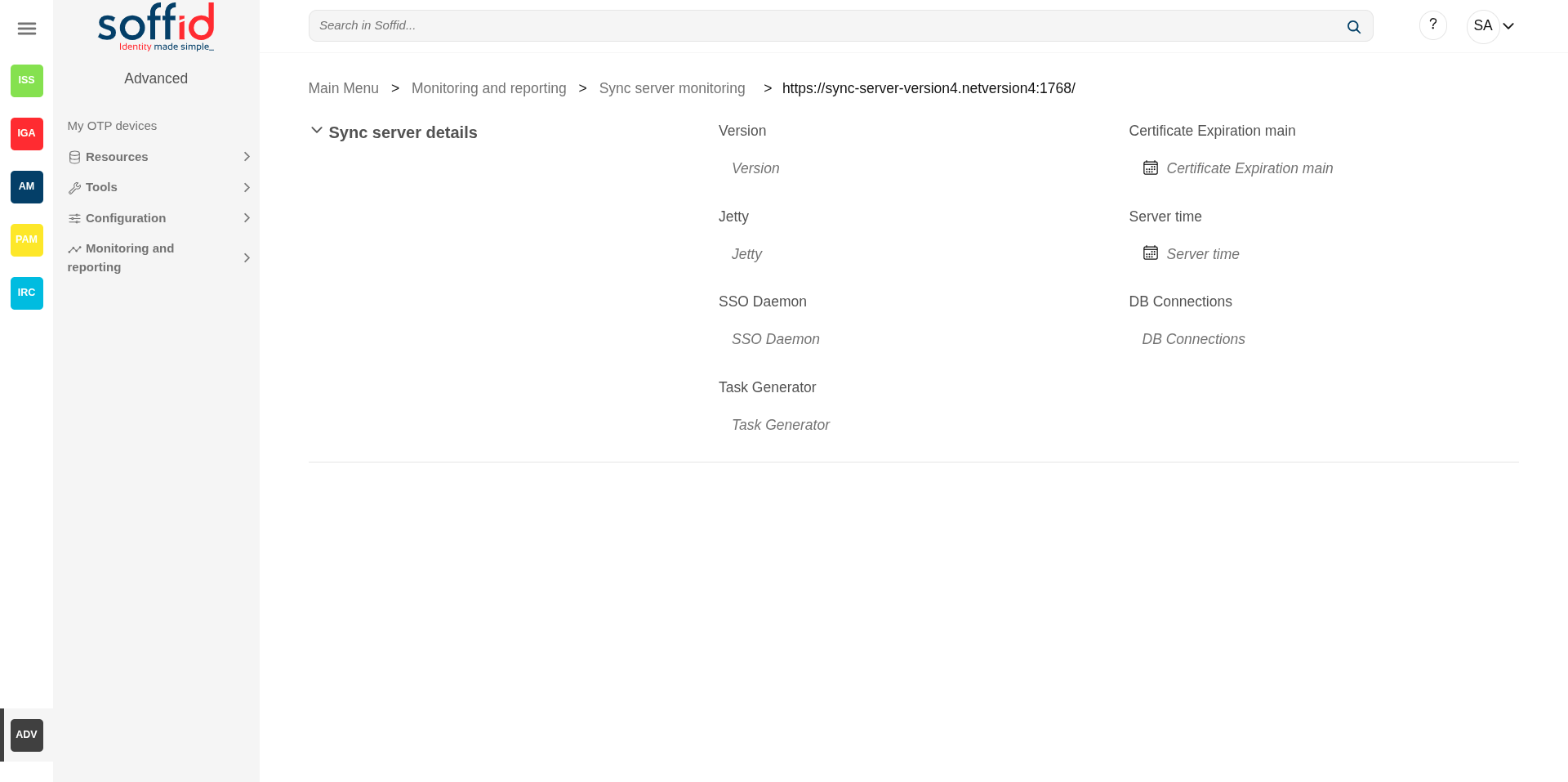

View details
Display the details of the sync server.
💻 Image

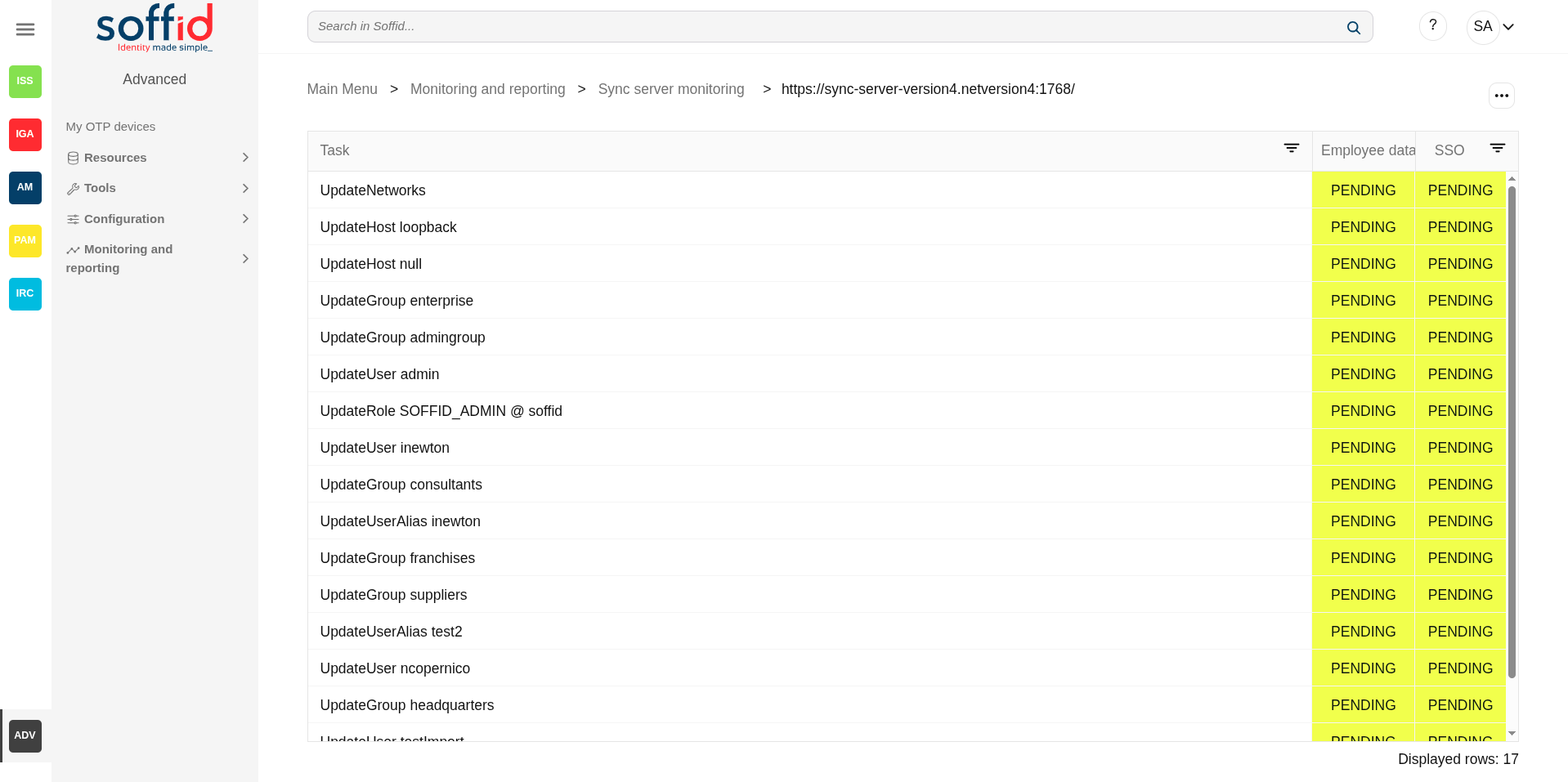

View Tasks
Displays a matrix with all the agents configured, all the tasks, and the status of the task for each agent. You can reload the matrix with the updated tasks.
The available status for a task are:
- Done (green light): finished tasks.
- Pending (yellow light).
- Error (red light).
If you click on one error task, Soffid will display the details of that task, the basic data, and the specific data about Execution time, Error message, Scheduled and Log detail, and Soffid will allow you to perform the available actions. If you click on one pending task, you can perform the available actions.
💻 Image
Get log
AllowsIn youversion 4, Soffid allows users to downloadreview the Synclogs Serverof the sync server or each of the active agents.
In addition, debugging can be enabled/disabled for each log, and users can decide whether to view the log file.in real time or pause it.
Stats
Displays the performance (tasks per minute) graph of the synchronization servers.
💻 Image
Restart server
Allows you to restart the synchronization server that hosts any agent. Soffis will ask for your confirmation before performing that action. If you confirm, the server will be restarted.
Additional information
Display the additional information of Soffid
💻 Image
Tasks
Active tasks
Displays a graph with information about the tasks pending to be performed on the different systems.
Tasks by server
Displays a graph with information about the tasks for each server.
View Agents
Displays a view with a list of agent tasks, regardless of which synchronization server they are running on.

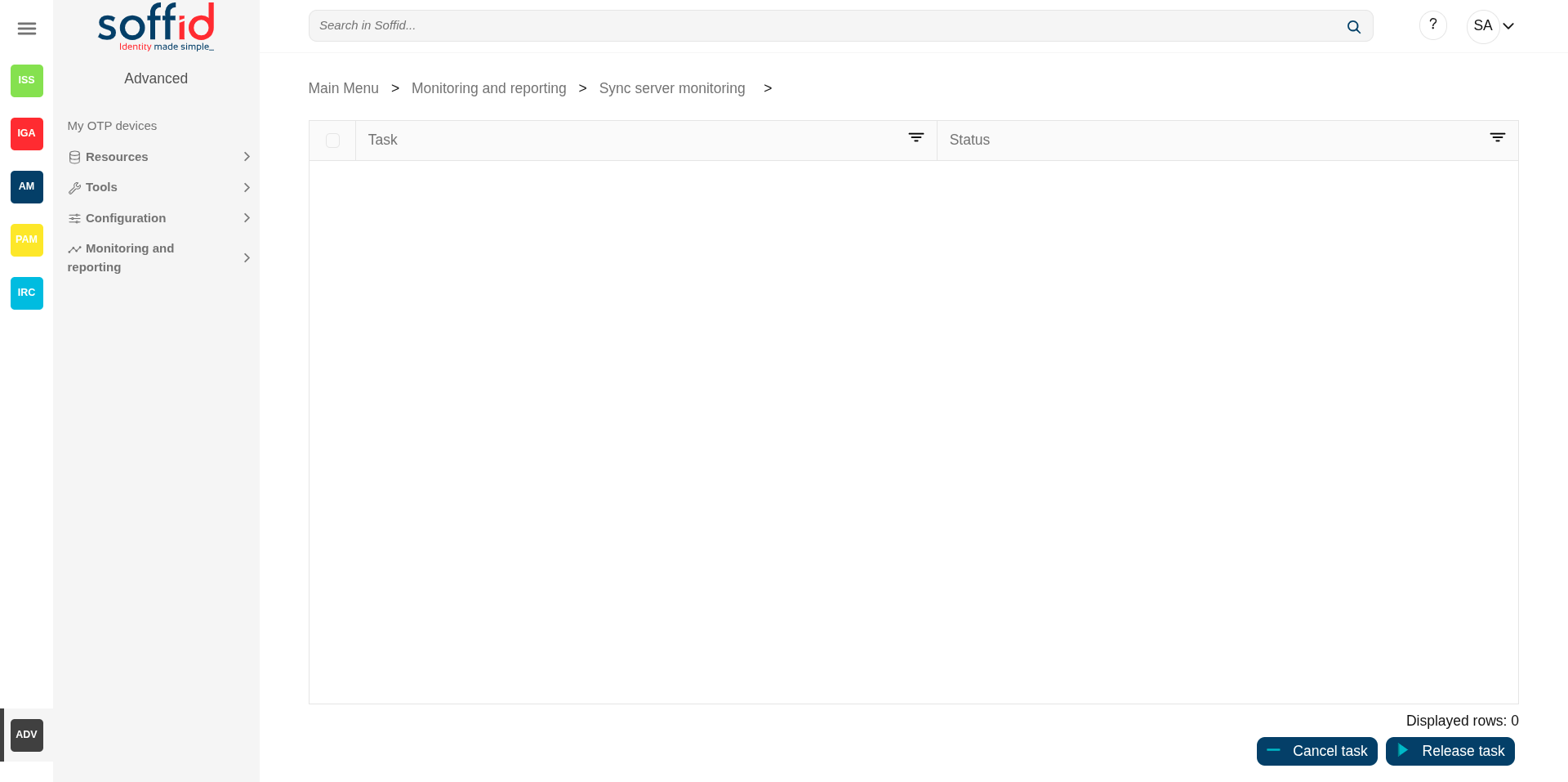

Not scheduled tasks
Displays a view with a list not scheduled tasks. At that view, you can cancel and release the held tasks
💻 Image
AgentSynchronization servers actions
| Displays a view with a list not scheduled tasks. At that view, you can cancel and release the held tasks |
Sync server actions
| View agents |
|
| Allows you to restart the synchronization |
|
| View details | Display the details of the sync server. |
| View Tasks | Displays a matrix with all the agents configured, all the tasks, and the status of the task for each agent. You can reload the matrix with the updated tasks. |
| Get log | Allows you to display the log trace of the syncserver and agents |
| Status | Displays the performance (tasks per minute) graph of the synchronization servers. |
Tasks actions
| Cancel task |
Allows you to cancel a specific task. Soffid will ask for your confirmation, if you confirm, that task will be canceled. |
| Prioritize | Allows you to release a specific task. Soffid will ask for your confirmation, if you confirm, that task will be executed. |
Not scheduled tasks actions
| Cancel task |
Allows you to cancel a specific task. Soffid will ask for your confirmation, if you confirm, that task will be canceled. |
| Release task | Allows you to release a task so that it goes to the syncservers task synchronizer and can be executed. |
