Introduction to Identity self service

What is identity self service?

Soffid Console provides the identity self service, where the end-users can consult or change their credentials, request new permissions or access to applications, manage their profile, or launch applications. All from a single point of entry.

Another purpose of the identity self service is to reduce the workload of the IT department, as well as improve the overall security of the IT system.

Soffid allows administrator users to configure access to the different options depending on the end-users roles defined to use Soffid. In this way, end-users will be able to access the identity self service Portal to manage their own requirements always depending on the defined business processes.

Screen overview

Brief description of each option

My tasks

My tasks display all the tasks in which the user is involved, like a supervisor, manager, o person how has to approve or deny that task.

For more information, vist My Task page.

My issues

My issues display all the issues that the user will be able to check, and this option allows the user to manage this issues.

For more information, visit My Issues page.

My requests

My requests display all the processes or workflows that the user will be able to run.

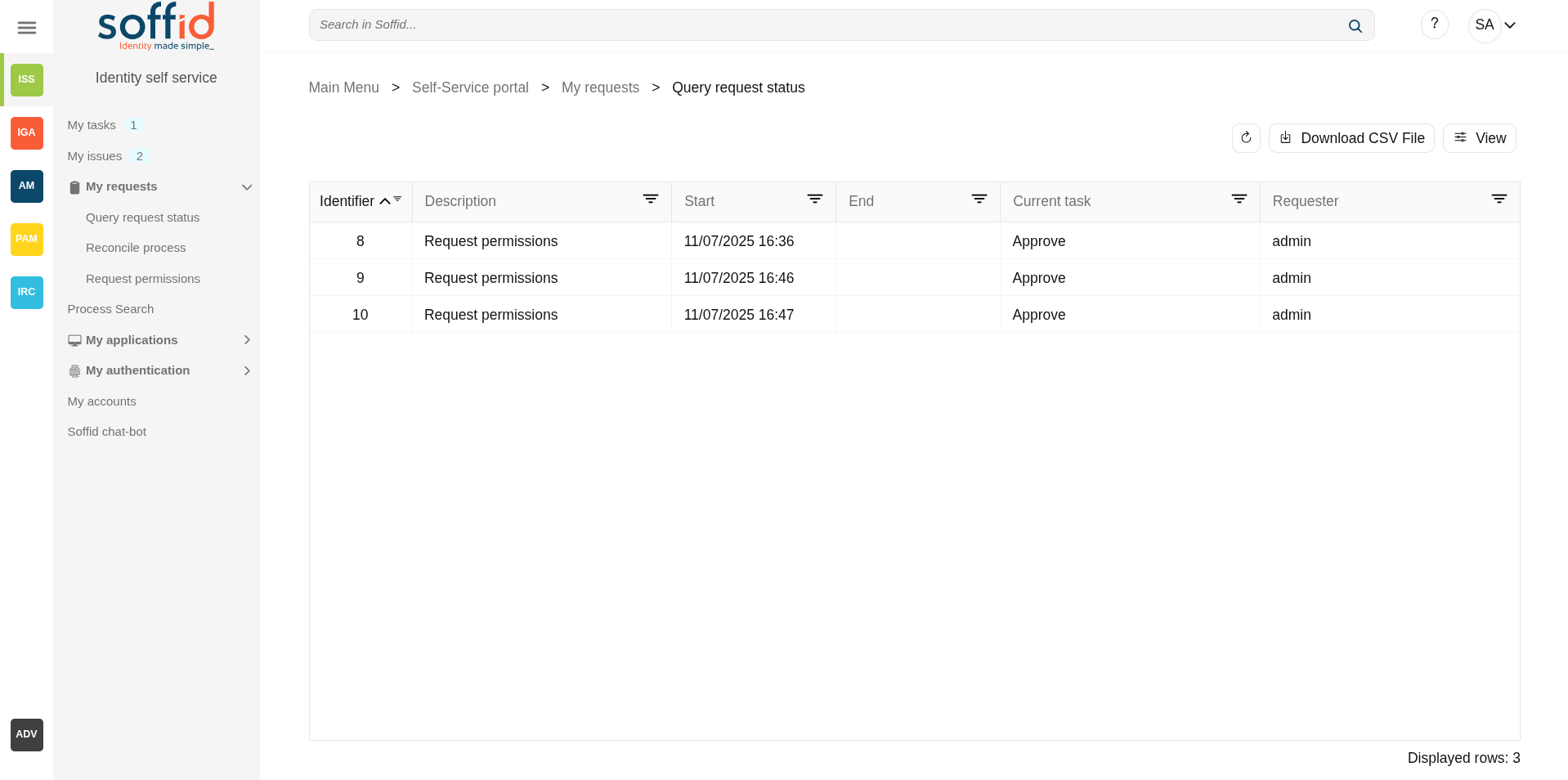

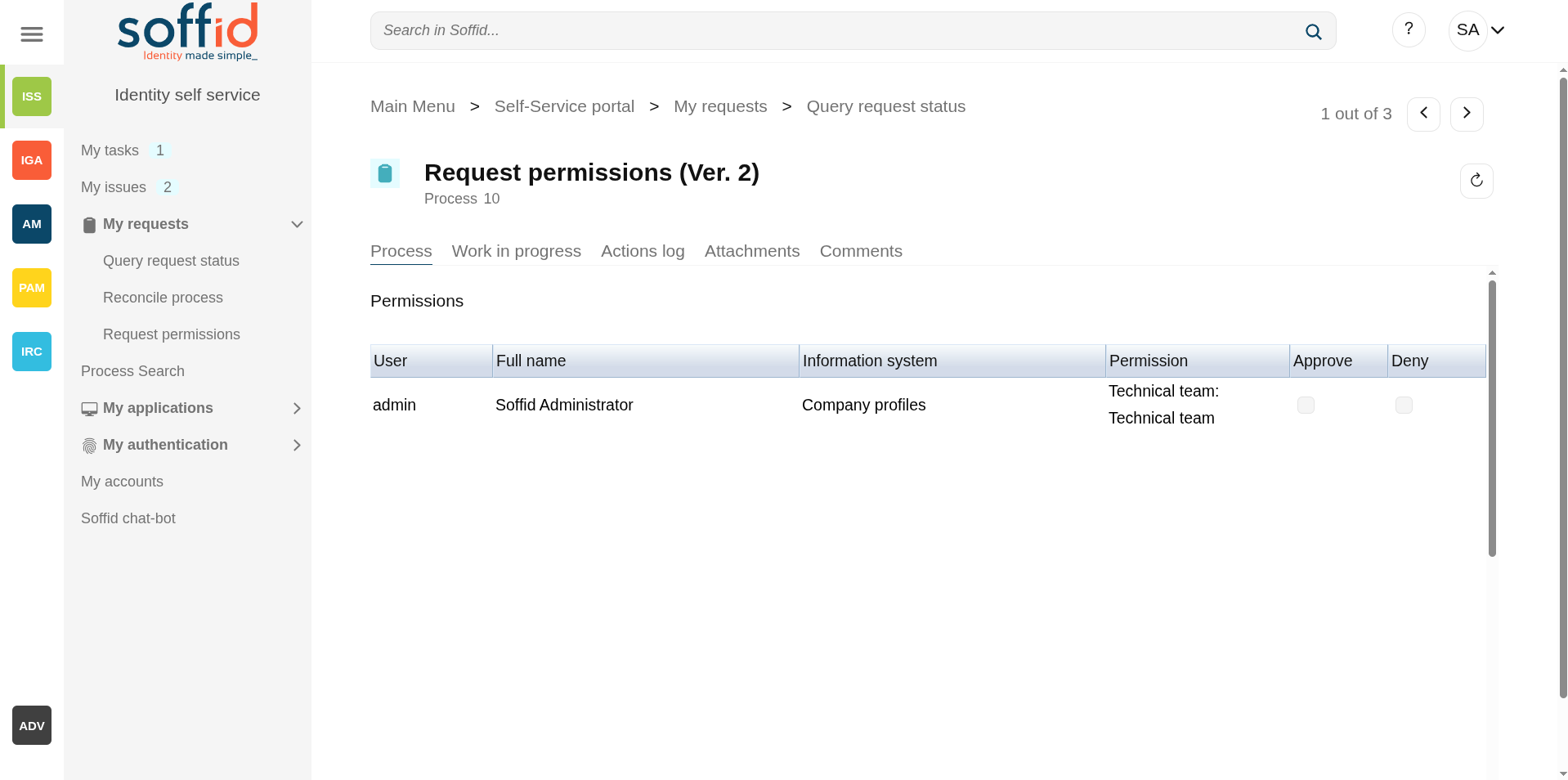

And also the included page Query request status displays all the processes that the user has initiated and allows the user to consult all the information about the workflow.

For more information, vist My Request page.

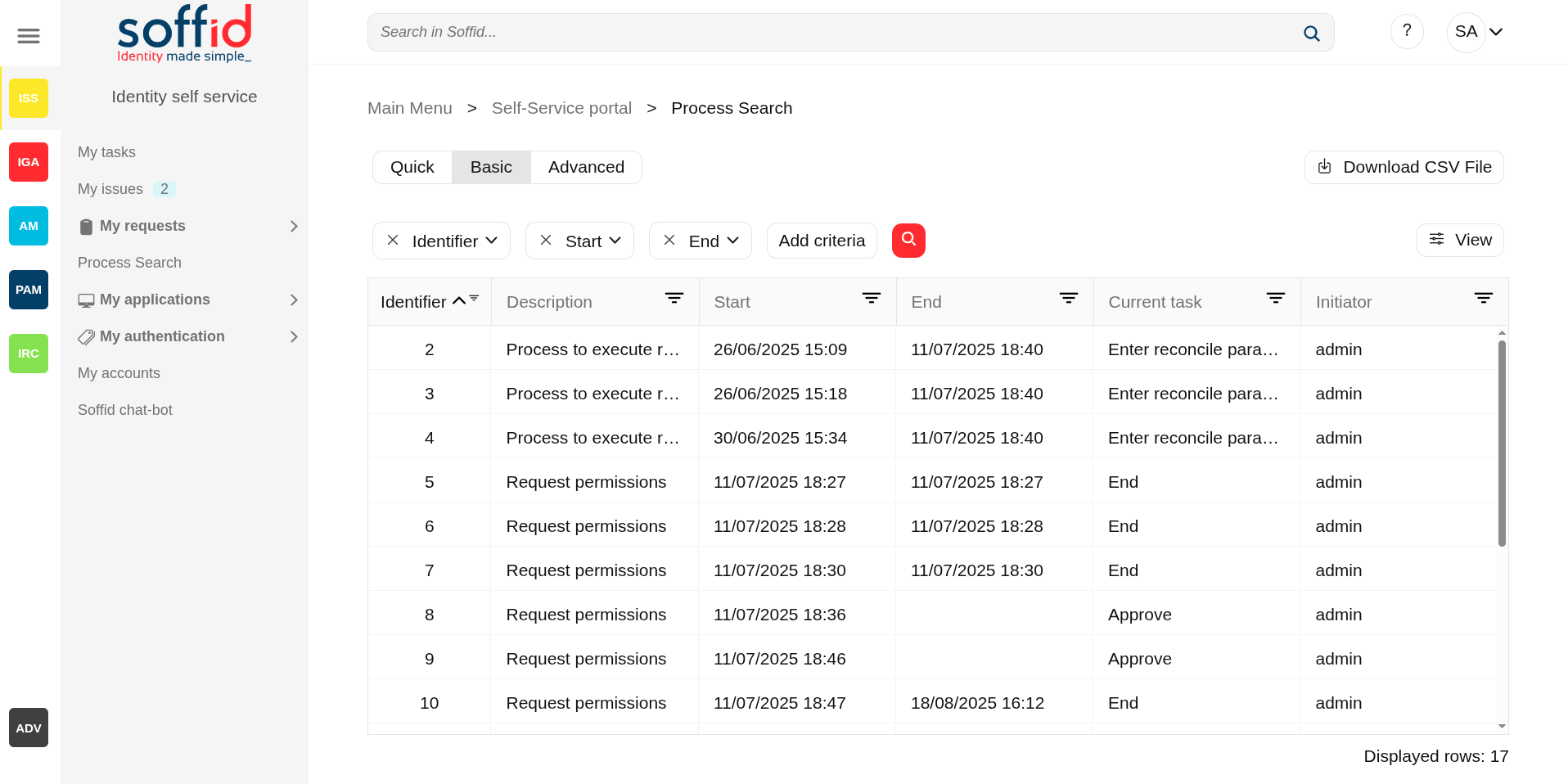

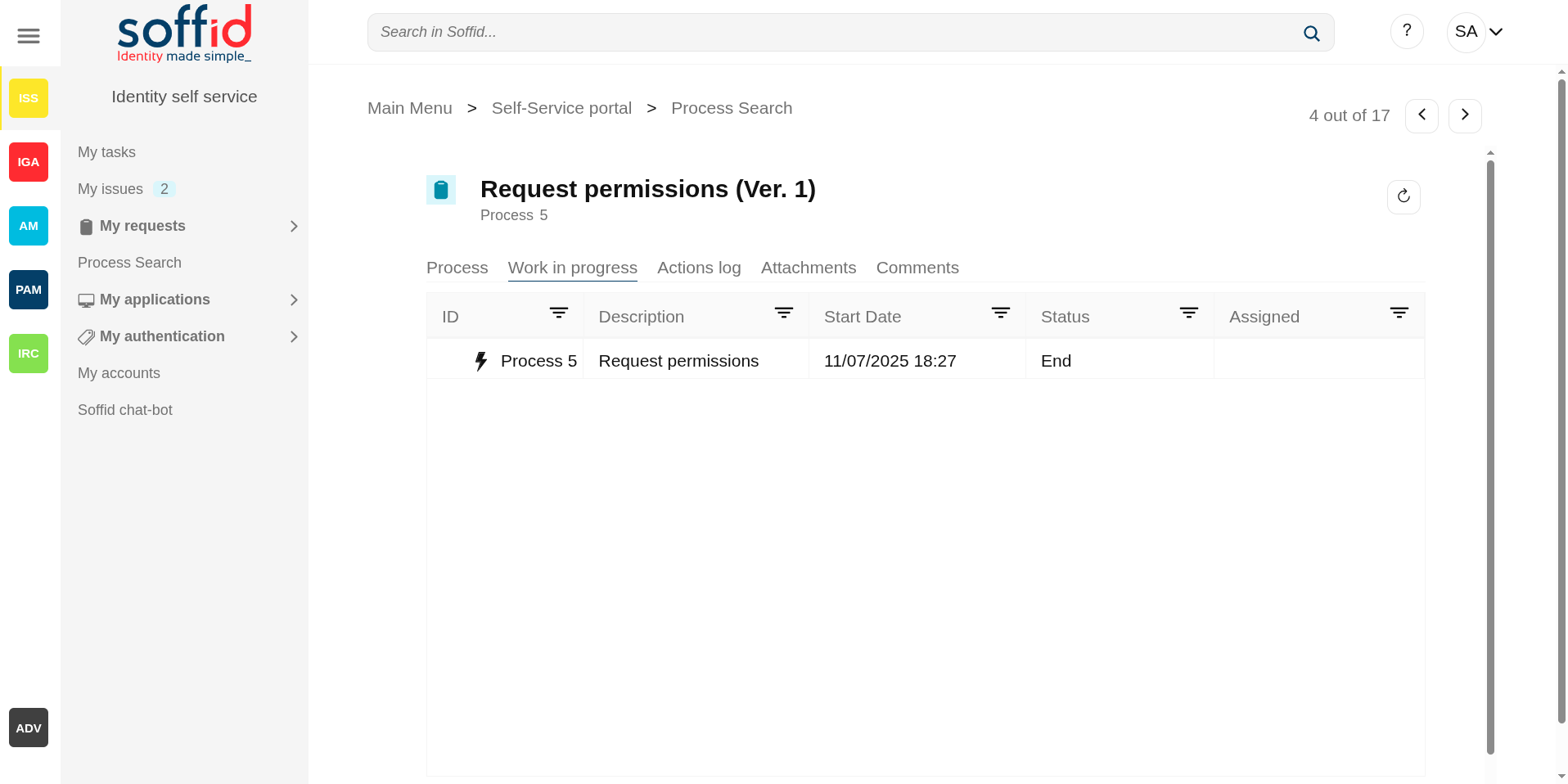

Process search

That functionality allows to users search for processes initiated or requested by themselves. Here the users will be able to consult all the information related to the processes and their status and if there are any pending tasks to be completed. If there are pending tasks, the user will be able to browse the task and manage it.

Administrator users will be able to consult all the information about all the processes which have been executed by any user.

For more information, visit the Process search page.

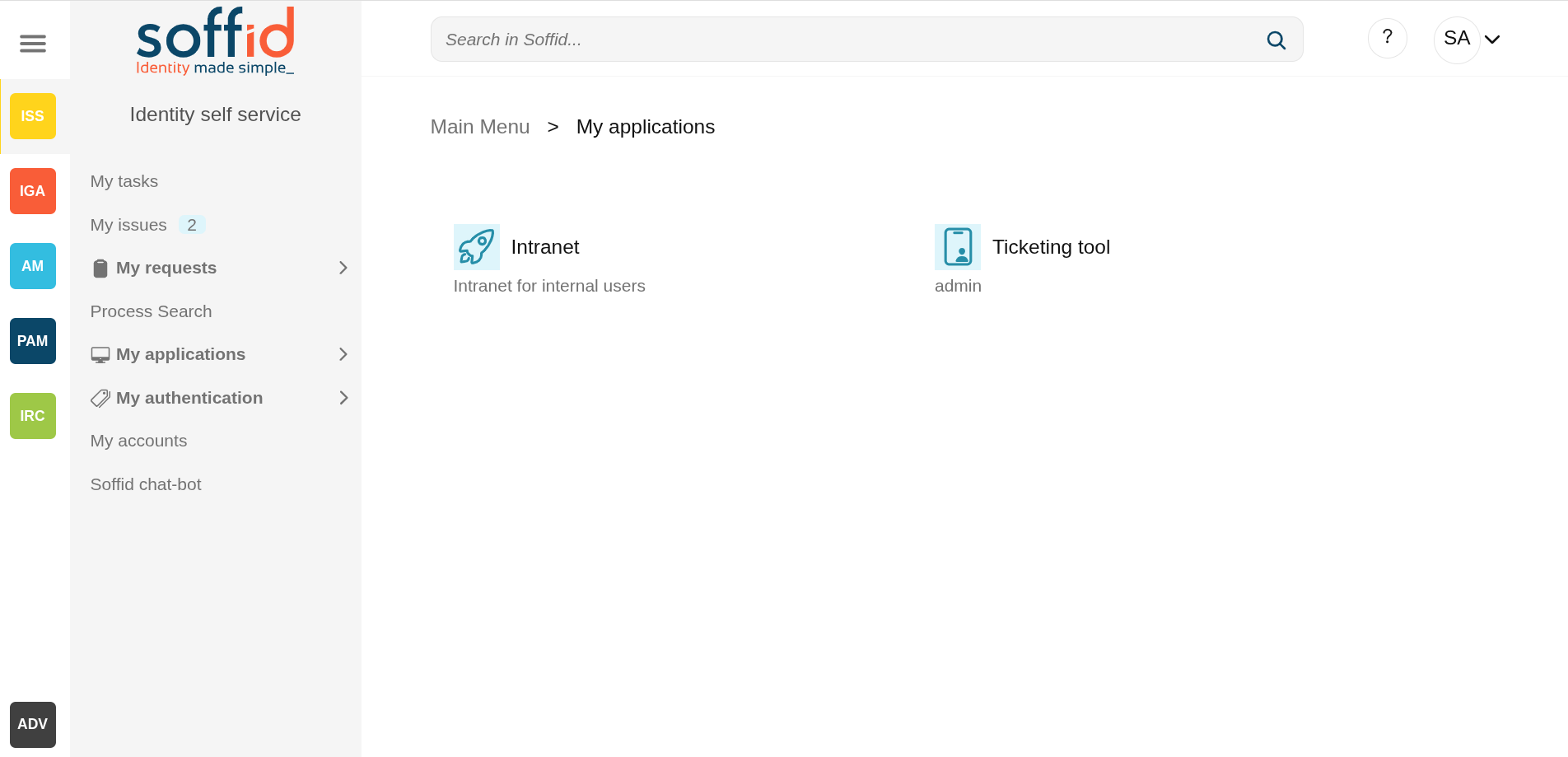

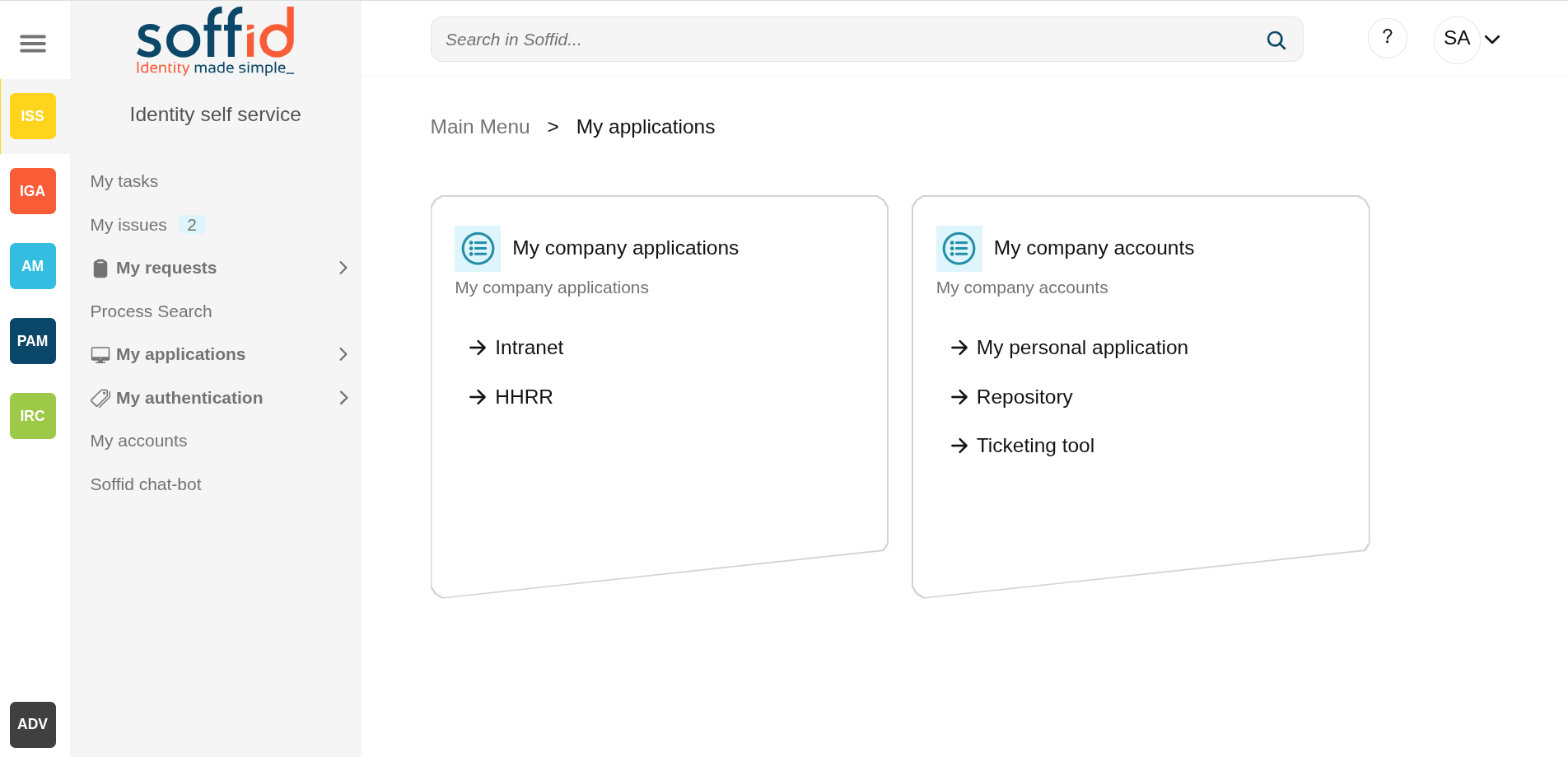

My applications

My applications display all the corporate applications and third-party applications as well to which the user has permission to connect. Those applications have to be configured into Soffid Console

The password vault folder will be displayed as well. In this folder, the users will be able to find the shared accounts on the Soffid vault folder and will be able to save their personal accounts.

For more information, vist My Applications page.

My authentication

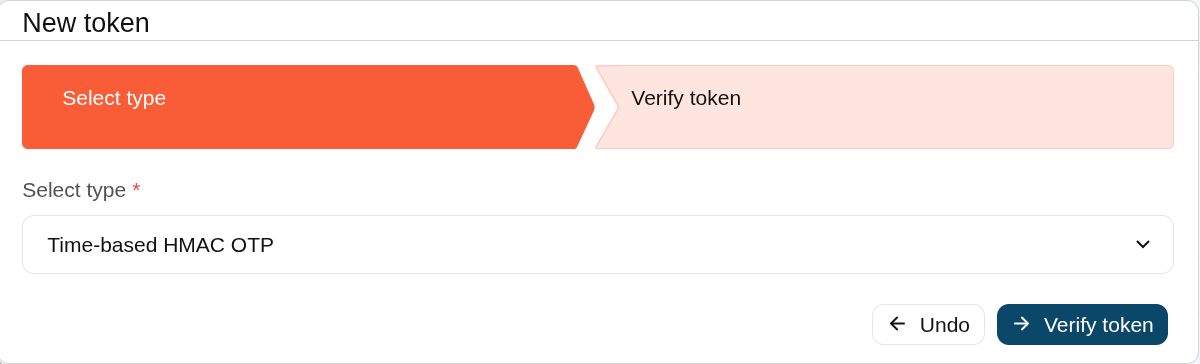

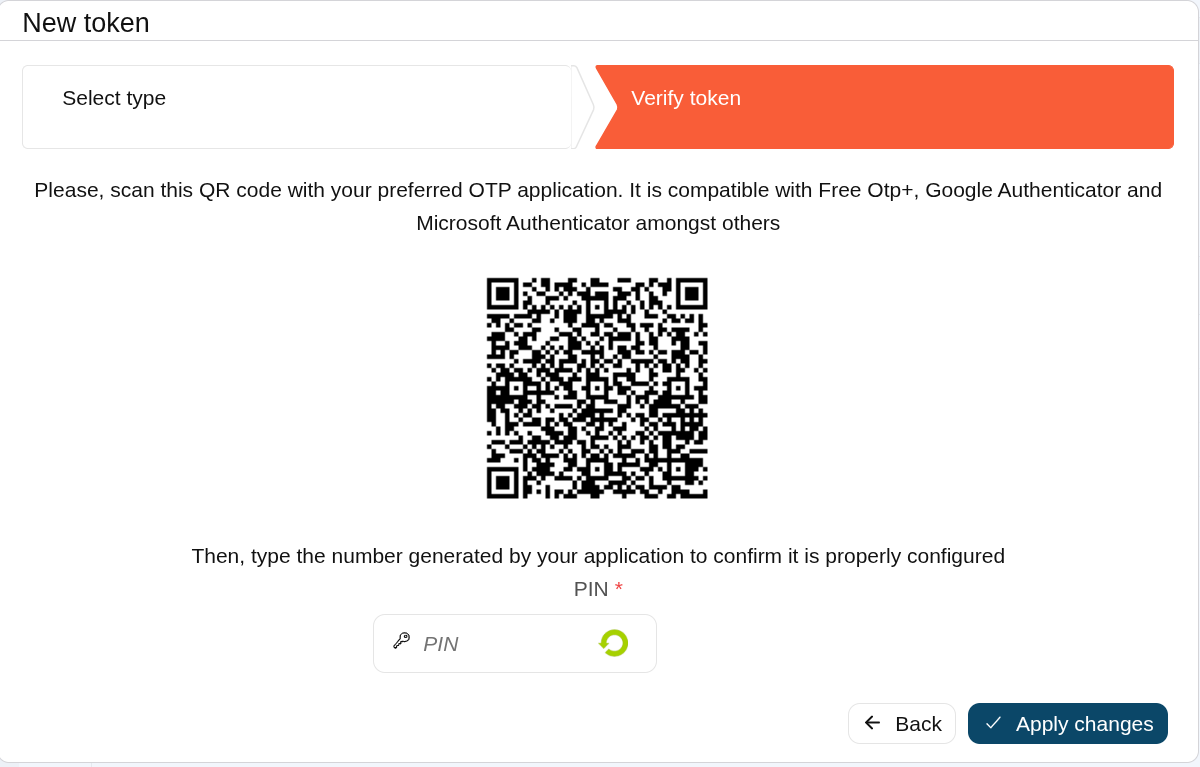

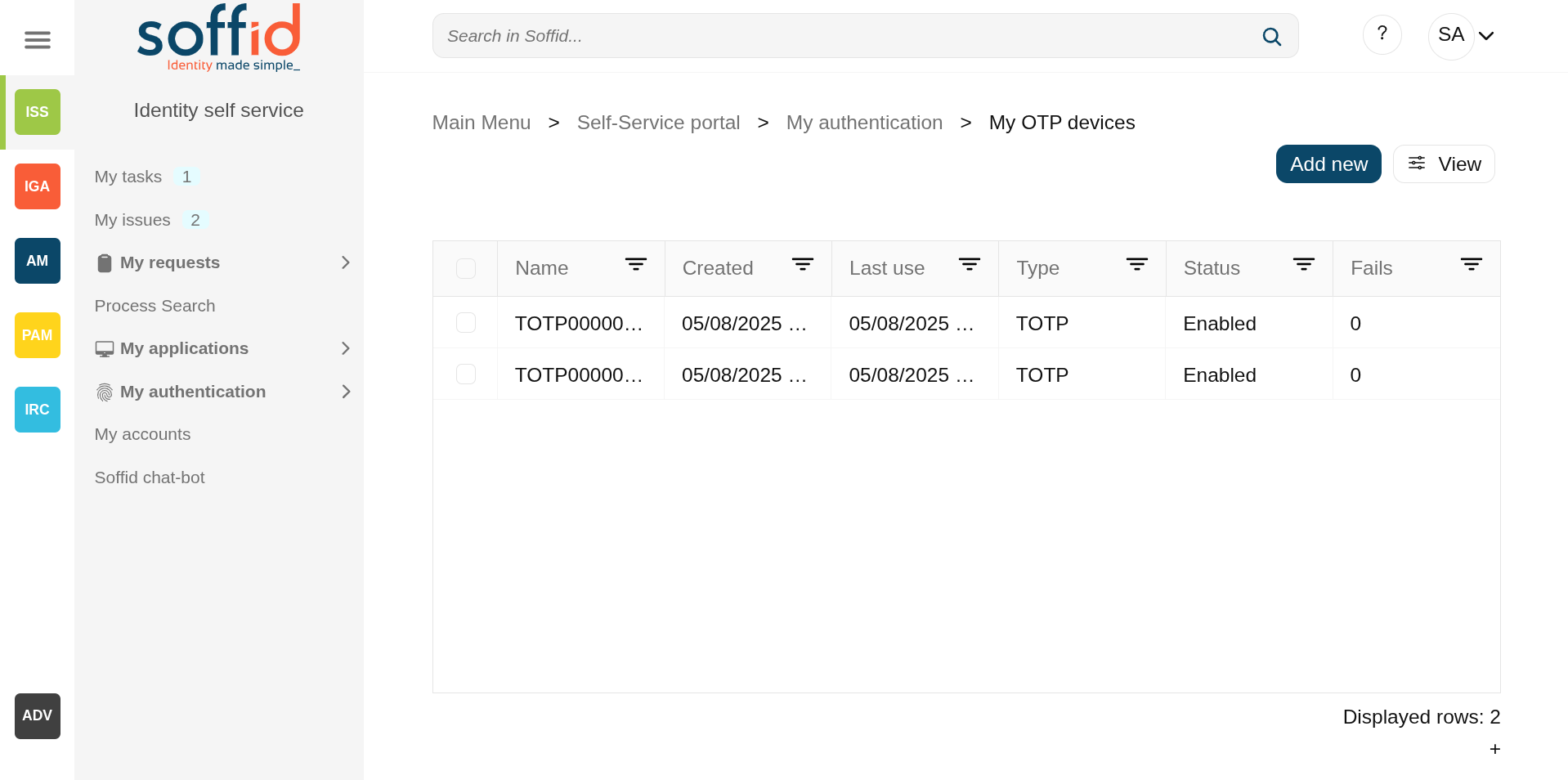

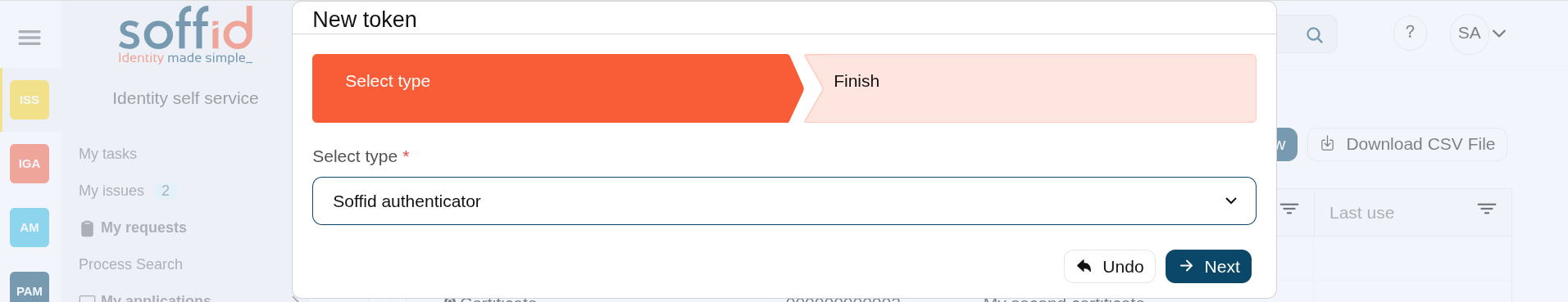

My OTP devices

My OTP devices display all the OTP devices configured by the user and allow to the user config new ones.

For more information, vist My OTP devices page.

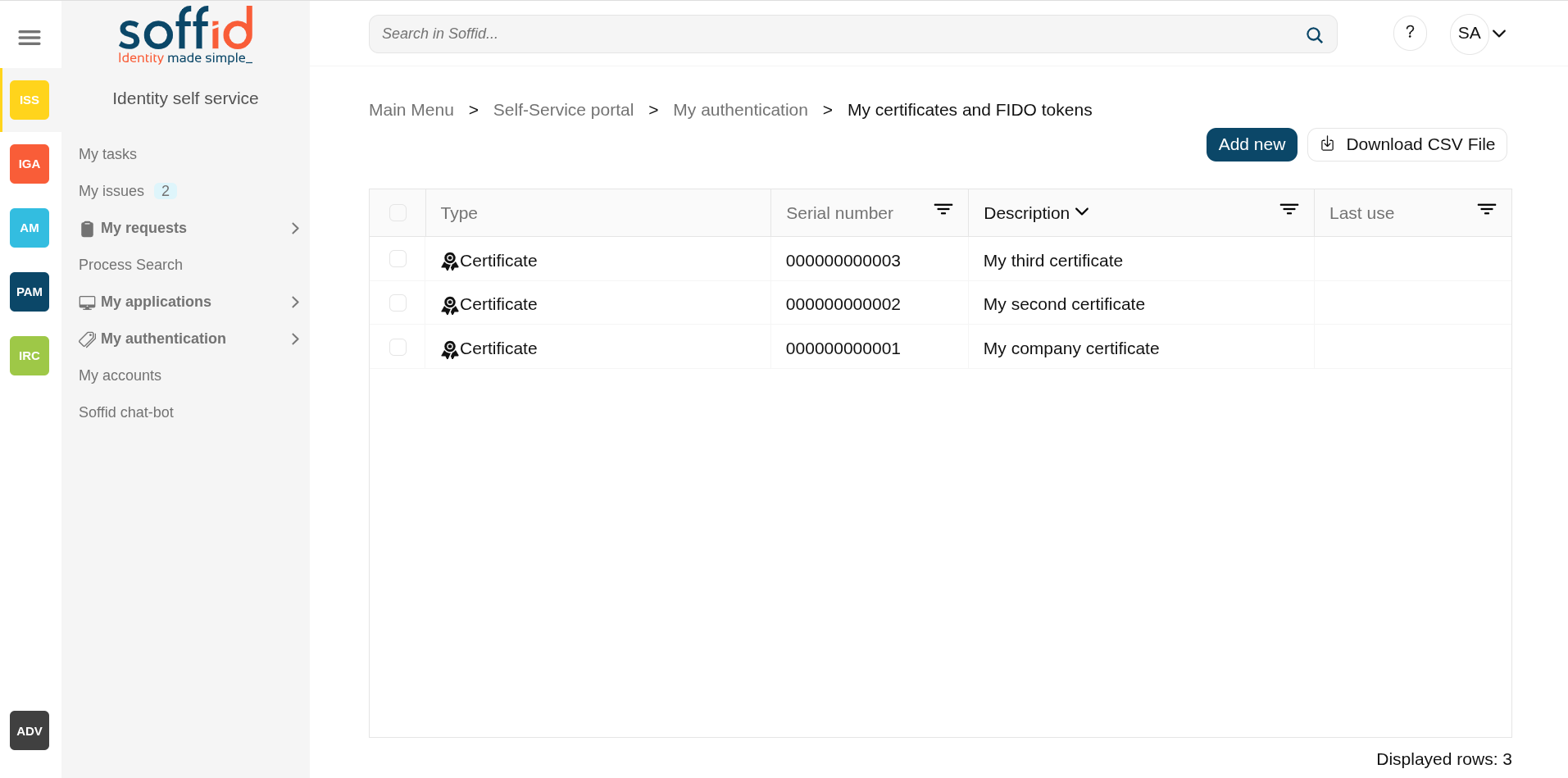

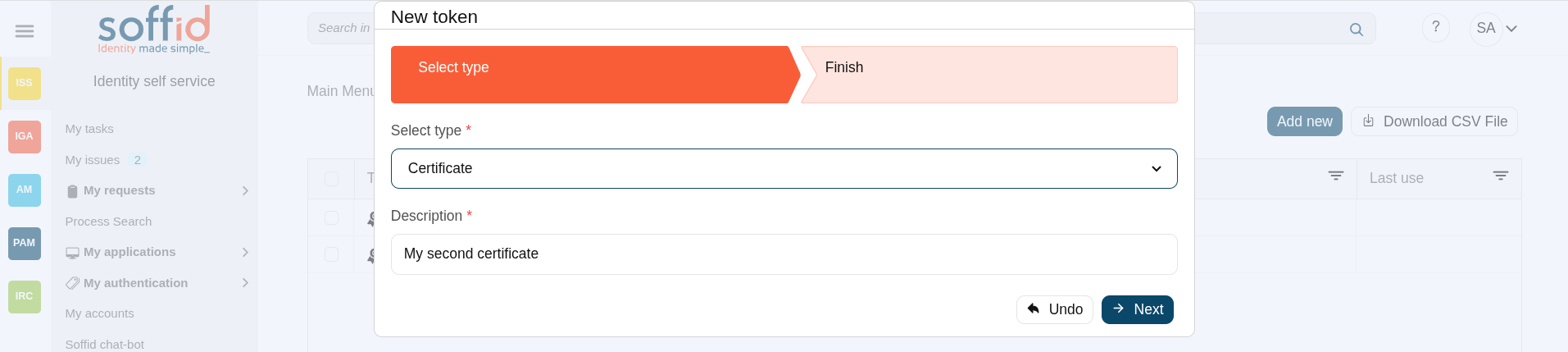

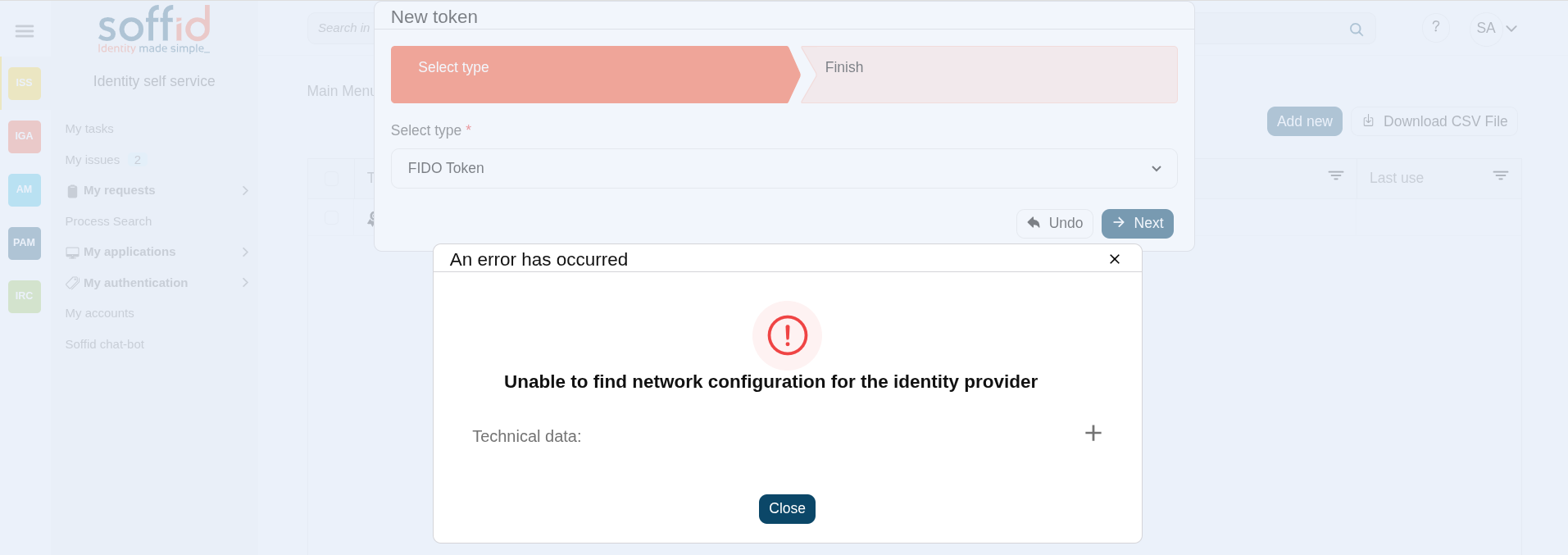

My certificates and FIDO tokens

My certificates and FIDO token display all the configured certificates and allow to the user config new ones.

For more information, visit My certificates and FIDO tokens page.

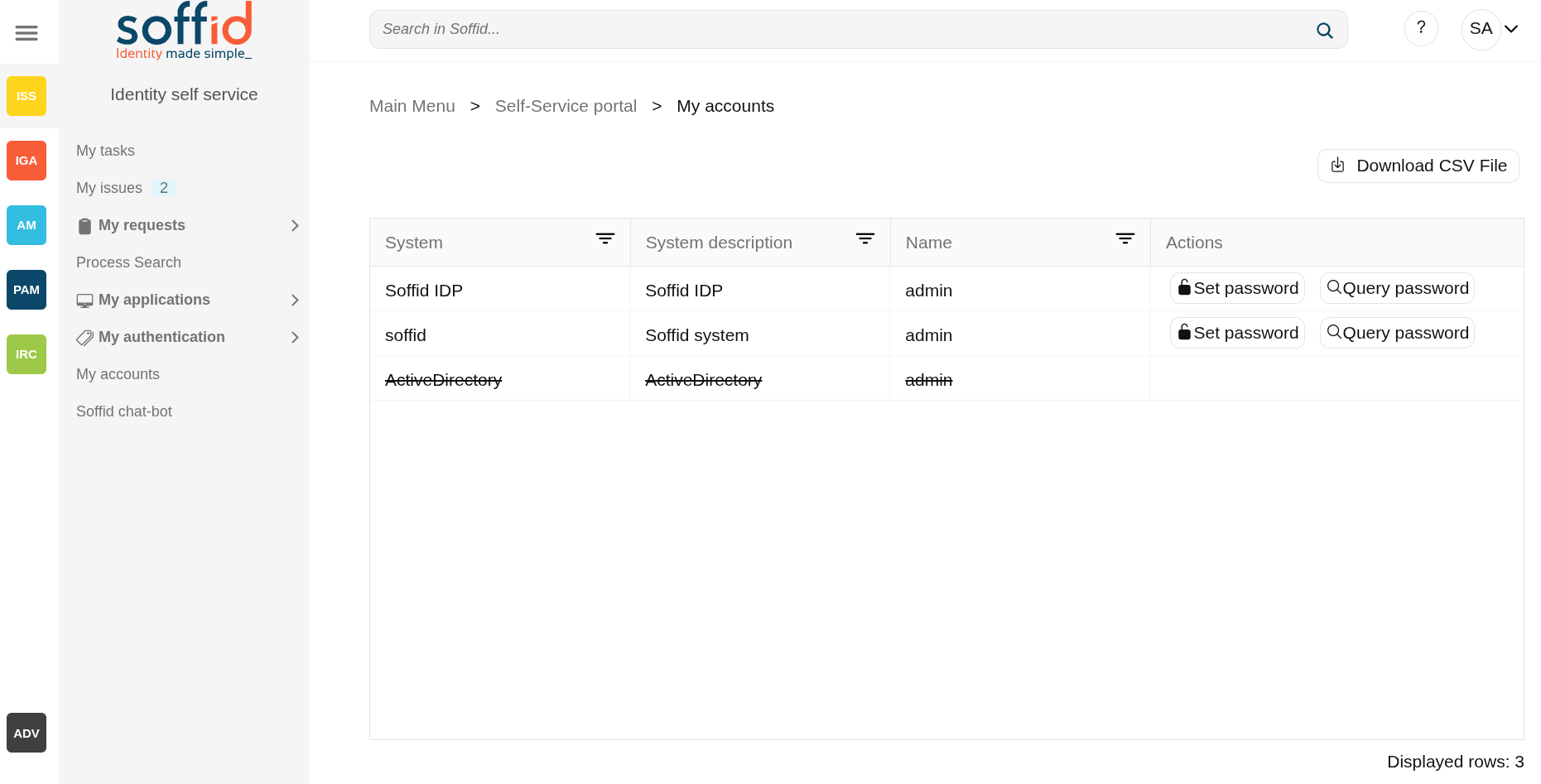

My accounts

My Accounts display all the personal user accounts registered into Soffid Console and with which the user will log into the target system.

In this section, if a user has permissions, they can view or change their password.

For more information, visit My Accounts page.

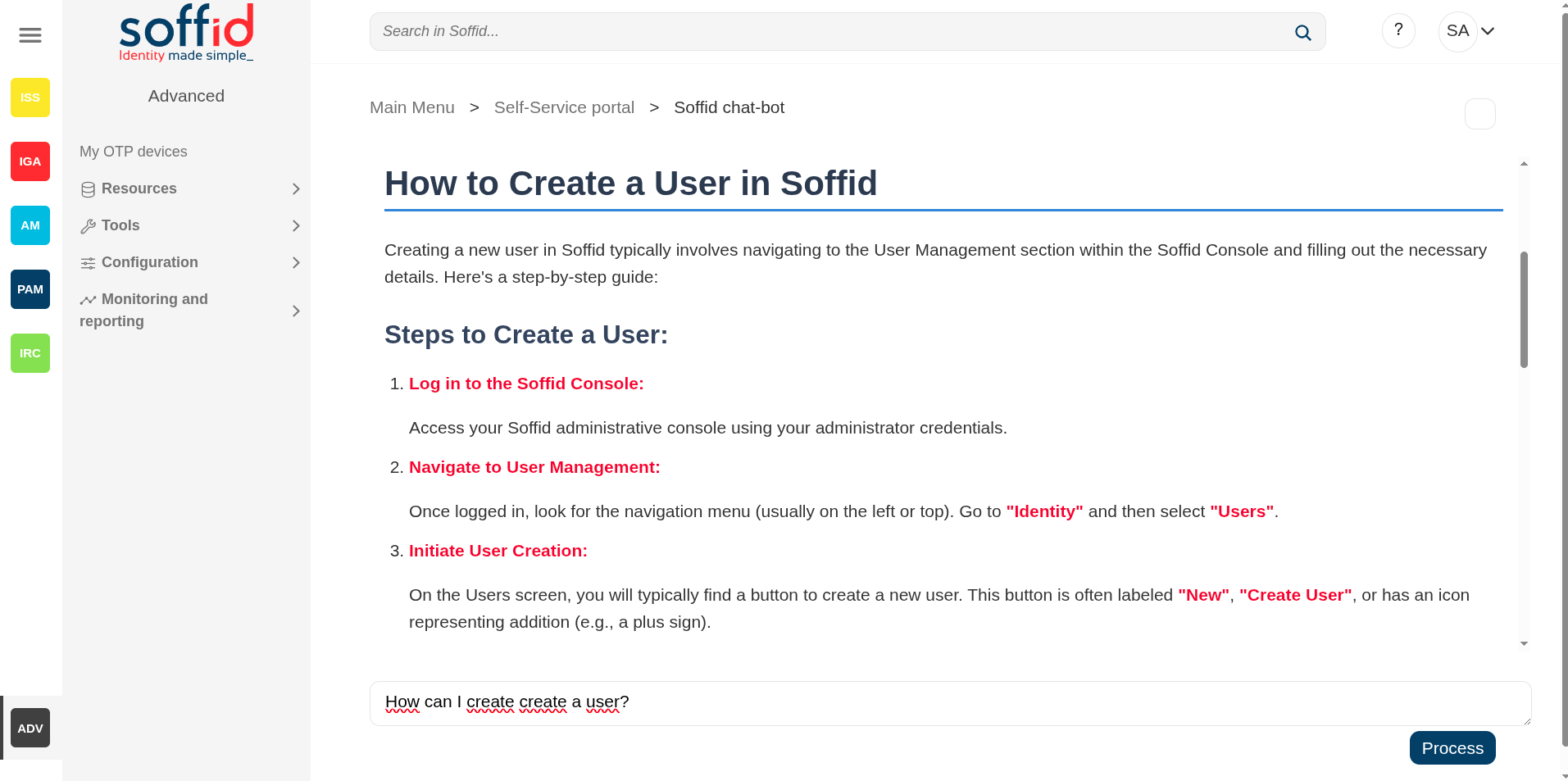

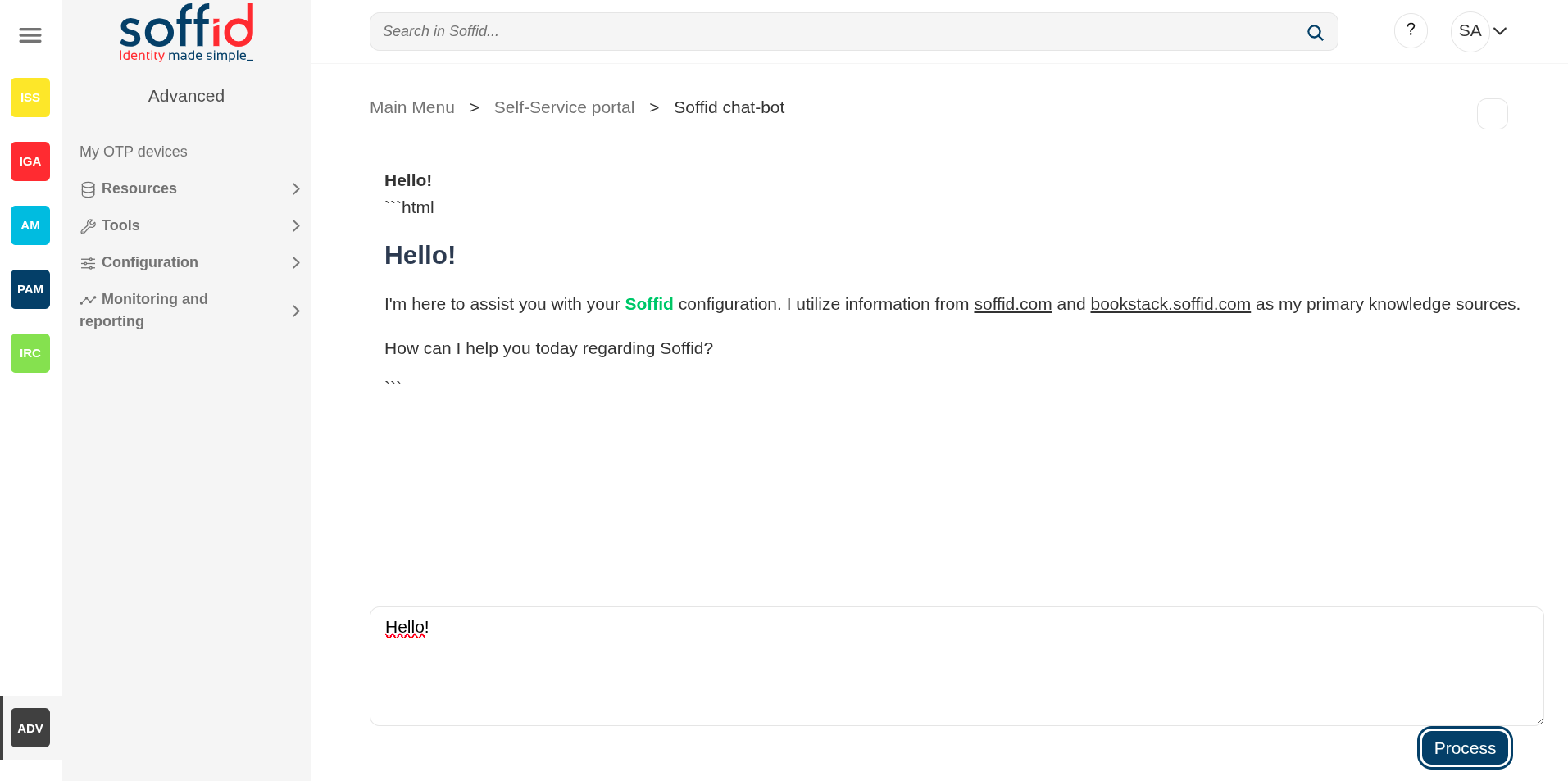

Soffid chat-box (new functionality)

The new Chat-box Soffid functionality is our AI and relies on Soffid's expertise to provide documentation or apply changes directly in the system, feel free to ask your questions.

For more information, visit Soffid chat-box page.

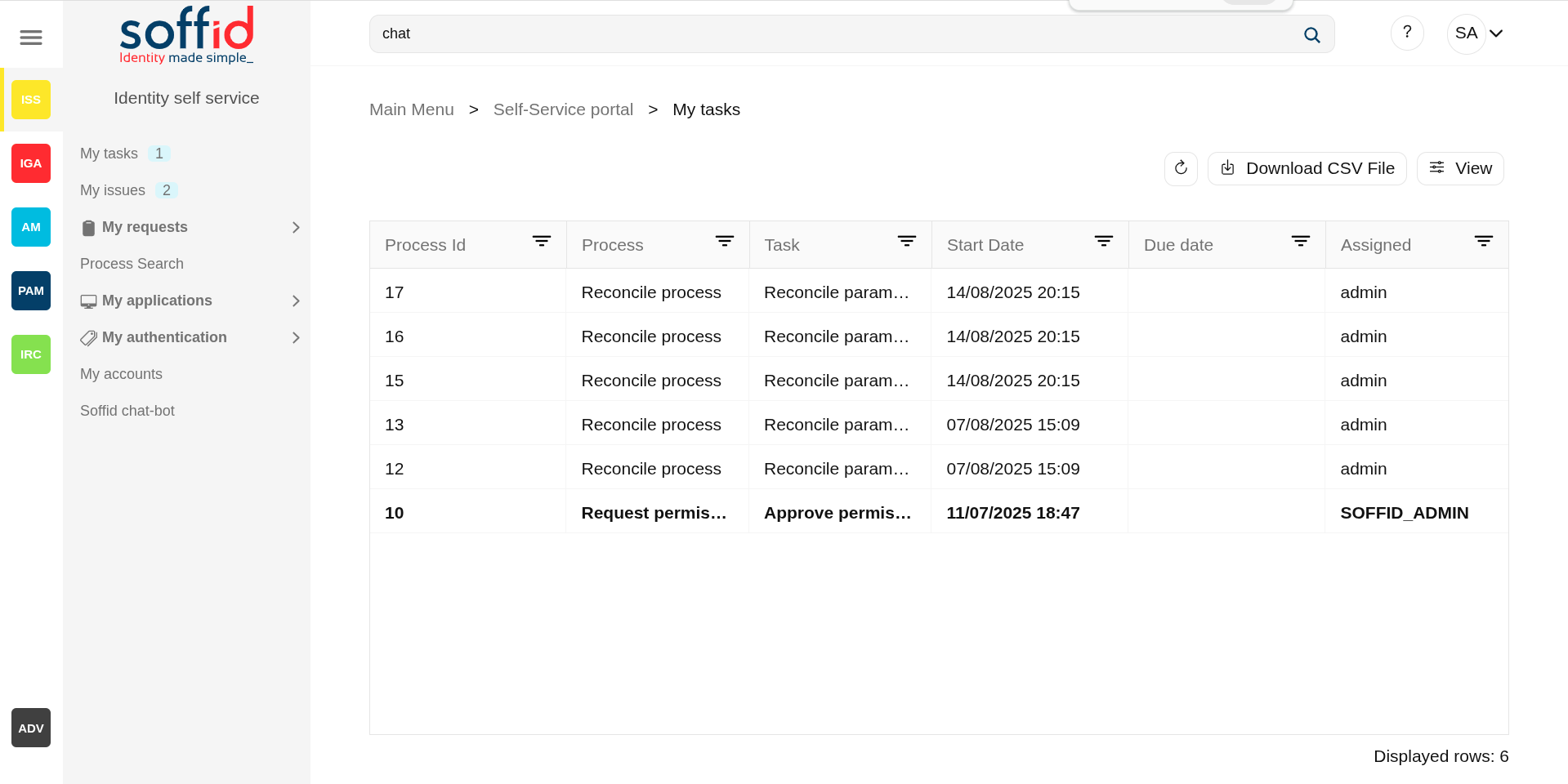

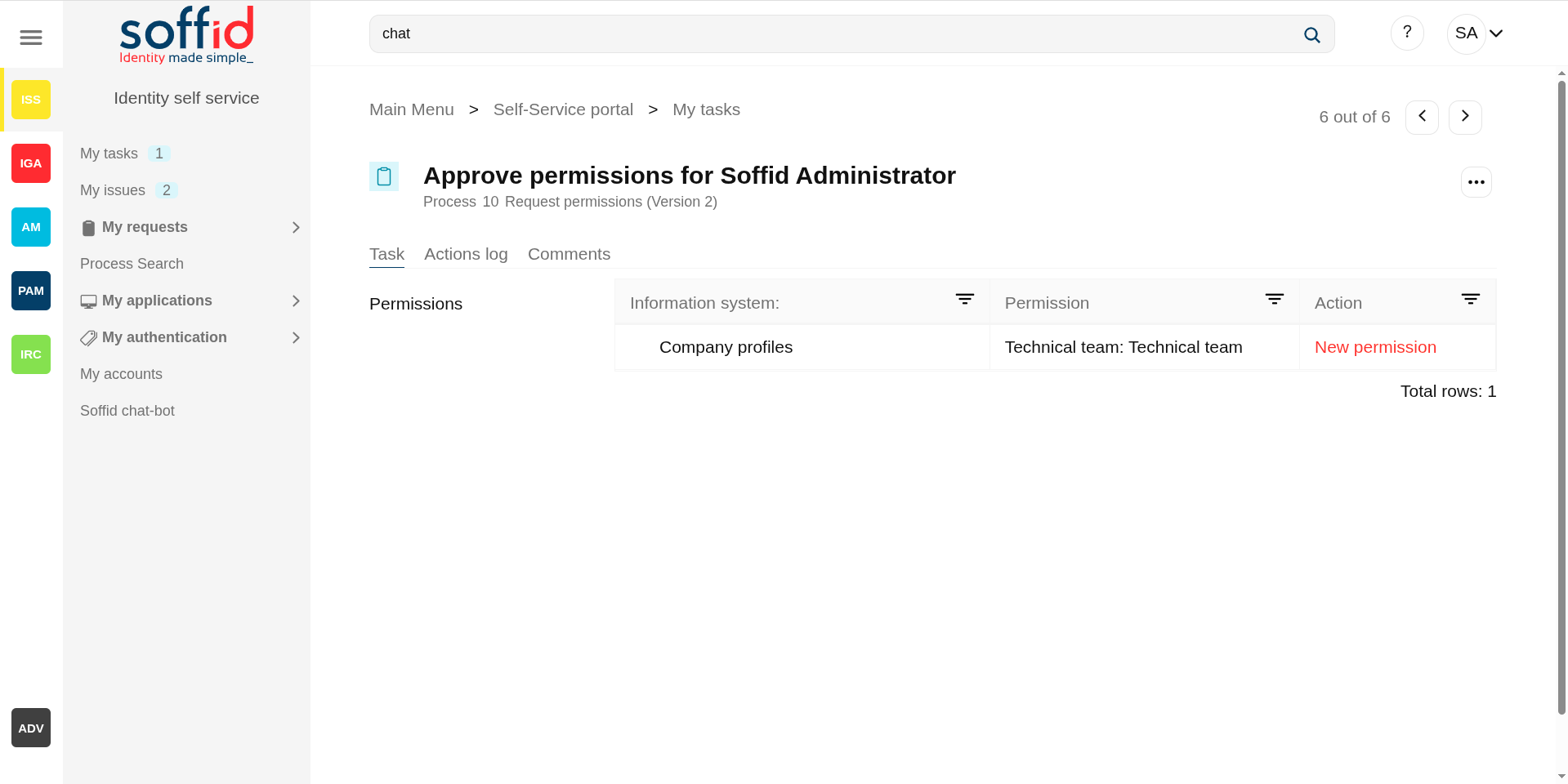

My tasks

Description

Displays the tasks in which the user is involved like a supervisor, manager, or person responsible for approving or rejecting those tasks.

My tasks provides information about the process, the task, the start and due date and the asigned user. By clicking a record, it will be shown de task details and to perform actions will be allowed.

Manual tasks are assigned to named users, groups or roles. Whatever strategy is followed, each one of the assigned users will see the task at their tasks page.

You can differentiate tasks by their highlighted style:

Highlighted bold: when the task is pending for the user to take ownership.
Highlighted blue: task close to completion date
Highlighted red: task after the completion date
Normal: started task

The purpose of My tasks as a part of Identity seft service is to reduce the workload of IT department, as well as improve overall security of IT system. Soffid console is concerned about task delegation and workflow management.

Screen overview

Related objects

Configure Workflow engine : where the workflow engine is configured.
Business process definition : where workflows are published.
BPM editor : where to create or modify workflows.
My tasks : pending workflows where the user has to perform an action in order to continue their workflow.
My requests : the workflows that the user can initiate are listed here.
My requests > Query request status : to search for all processes started by oneself.
Process Search : to search for all processes.
Metadata : to add attributes to display in the search tables.
Scheduled jobs : shows active workflows pending asynchronous tasks.

Standard attributes

Table

Process id: unique process identifier in the system that stars from zero and increases by one.
Process: process name (this is the name of the workflow).
Task: name of the task in which the process is running.
Start date: date and time when the process was started.
Due date: date and time when the process will finish.
Assigned: user who has been assigned the task.

Detail

Below you can see the workflow information, which has several tabs.

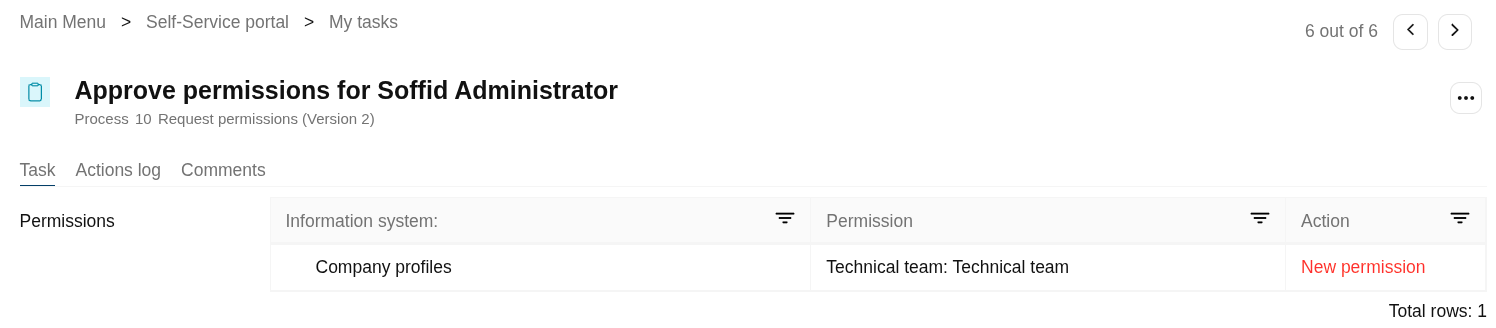

Task tab

Displays information about the work performed in this task. This information varies for each workflow but is almost always structured as a form.

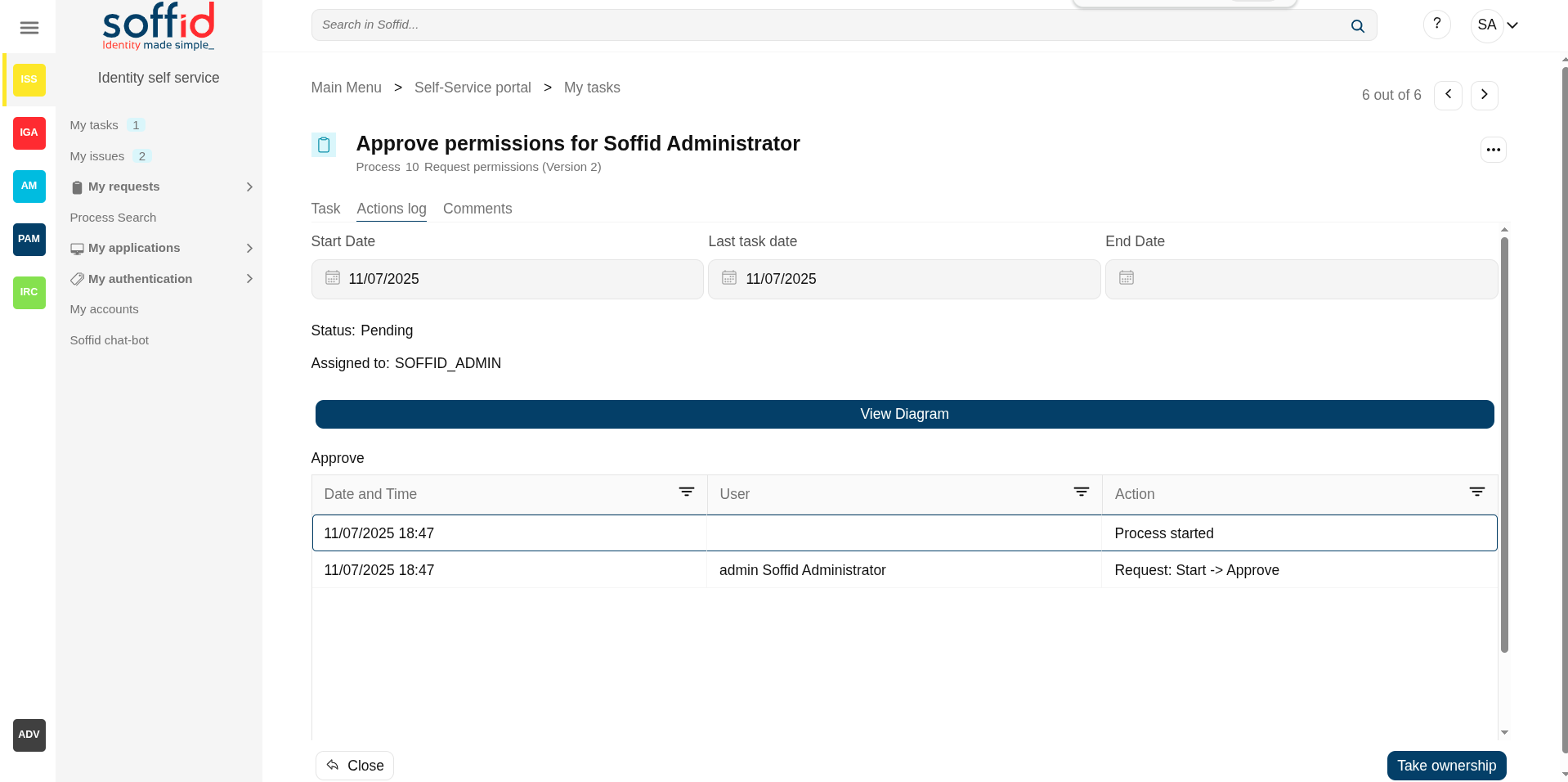

Action logs tab

The action logs tab shows basic information about the process and a list with the summary of all the successive phases through which the task has passed.

Start date: date and time the task starts
Last task date: date of last task update.
End date: date and time the process ends.
Status: shows the point of the task (pending, on going or End/Completed)
Approve pending permissions: Summary of all the successive phases through which the task has passed, providing information on the start date and time of the phase, the user assigned, and the action that was done.


Attachments tab

This option only appears if it has been enabled in the workflow settings. This screen lists the documents attached to the task.

Allows you to download those documents and to verify any digital signature attached to them. Some tasks even allow the user to upload documents.

Comments tab

Displays the comments list added during the business process execution. Displays the comments list added during the task execution providing information about the user who wrote the comment, the date and time of that writing, and the comment that was writed.

Actions

Table

Refresh	This action refresh the task table with the last current data.
Download CSV file	This action allows you to download a csv file with the list of all tasks.
View	Allows you to add or remove columns to the table. It is also possible to change the order of the columns.
"Open task"	By clicking on a record, the task detail will be shown.

Detail

Close	Allows you to closes the task window, you can add new comments and those will be saved.
Take ownership	Enables the user to self-assign the task to authorize or deny it.
Schedule	Allows you to schedule the task execution.
Delegate	Allows you to to reassign the task to another user, who will must approve or deny it.
Approve	Allows you to authorize the task. When you authorize a task all defined operations for this task will be performed.
Reject	Allows you to deny the task. When you deny a task none defined operations for this task will be performed.

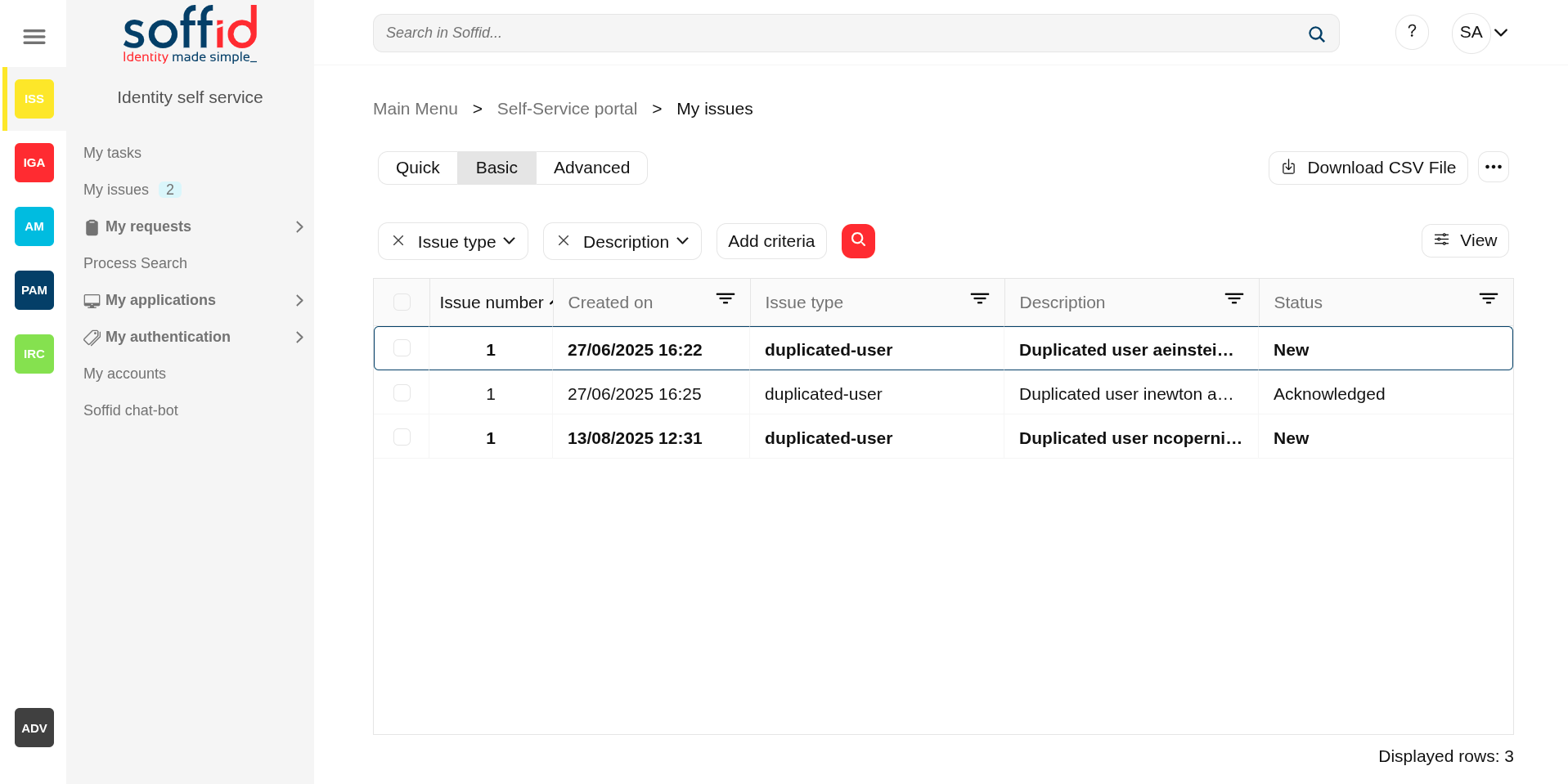

My issues

Description

Soffid provides a tool to manage all issues and allows you to perform the operations available for each type of task. The actions to be performed will depend on each kind of task.

The incidents that appear on this screen are those that the user has initiated or those for which the user has yet to take action in order to continue with their progress.

Screen overview

Issue policies : where the issues are configured
Issues : list all issues
My issues : issues started by a user or the user has pending an acction
Pages related to the different issues:

Standard attributes

Issue type: issue list defined by Soffid.
Description: a brief description of the issue.
Status: possible task status. There are three available statuses:
- New
- Acknowledged
- Solved
Created on: date of creation

Standard attributes

Issue number: an incremental number to identify the issue.
Created on: date of creation.
Issue type: issue list defined by Soffid.
Description: a brief description of the issue.
Status: possible task status. There are three available statuses:
- New
- Acknowledged
- Solved
Times: number of times the issue has been repeated.
Aknowledged on
Solved on
Percentage of failed login
Human confidence metric
System
OTP divice
Exception: Error occurred
Risk
Role grant
PAM Rule
jobName
Country
Account
Actor: owner of this issue.
loginName
Hosts
Users
Actions log: each of the actions that have been carried out on the issue
Requester
Breached email
Data breach
Breah description
Created by
Modified on
Modified by

Actions

Issues query action

Download CSV file	Allows you to download a CSV file with the issue data.
Add or remove columns	Allows you to show and hide columns in the table. You can also set the order in which the columns will be displayed. The selected columns and order will be saved for the next time Soffid displays the page.

Issue detail

Close	Allows you to quit without applying any changes.
Acknowledge	Allows you to check as Acknowledged
Solve issue	Allows you to mark as solved the issue.
Send custom email	Allows you to send a custom email to one recipient.
Add Comments	Allows you to add comments to the Action logs.

account-created

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.

disconnected-system

💻 Image

discovered-host

💻 Image

discovered-system

💻 Image

duplicated-user

💻 Image

Mege users

If you click this option, Soffid will allow you to merge the identities by selecting the data of each of them.

💻 Image

failed-job

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.

💻 Image

integration-errors

💻 Image

locked-account

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.
Lock affected host	If you click this option, Soffid will lock the affected host.
Unlock host	If you click this option, Soffid will unlock the host.

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.
Lock affected host	If you click this option, Soffid will lock the affected host.
Unlock host	If you click this option, Soffid will unlock the host.

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.
Lock affected host	If you click this option, Soffid will lock the affected host.
Unlock host	If you click this option, Soffid will unlock the host.

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.
Lock affected host	If you click this option, Soffid will lock the affected host.
Unlock host	If you click this option, Soffid will unlock the host.

otp-failures

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.
Lock affected host	If you click this option, Soffid will lock the affected host.
Unlock host	If you click this option, Soffid will unlock the host.

pam-violation

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.
Lock affected host	If you click this option, Soffid will lock the affected host.
Unlock host	If you click this option, Soffid will unlock the host.

password-changed

💻 Image

permissions-granted

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.

risk-increase

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.

💻 Image

Unlock account	If you click this option, Soffil will unlock the account.
Look affected accounts	If you click this option, Soffil will lock affected accounts.
Disable user	If you click this option, Soffid will disable the user.
Lock affected host	If you click this option, Soffid will lock the affected host.
Unlock host	If you click this option, Soffid will unlock the host.

security-exception

💻 Image

Disable user

If you click this option, Soffid will disable the user.

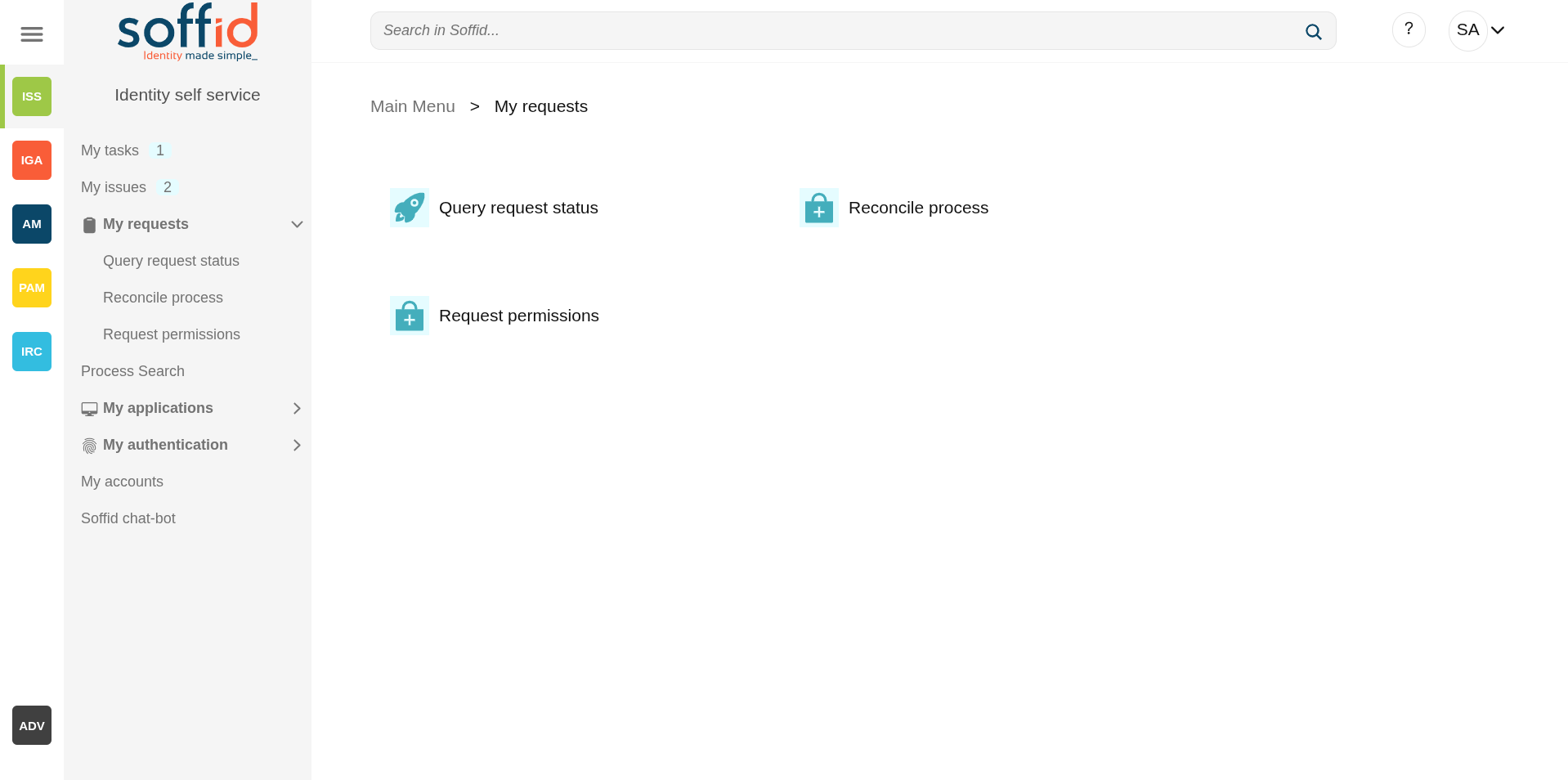

My requests

Description

Soffid provides a complete workflow engine that allows you to incorporate business processes or define new business processes as needed. End-users with the appropriate permissions will be able to request these processes. You can visit Self service portal examples page for more information.

My request screen allows to users:

On the one hand, in the Query request status screen the user can consult the processes they have executed and view the process details and status.
On the other hand, they will be able to execute the processes for which they have been assigned the proper permissions. For example "Reconcile process" or "Request permissions", see the "Screen overview".

More information about process and workflows on BPM Editor Book

Screen overview

Configure Workflow engine : where the workflow engine is configured
Business process definition : where workflows are published
BPM editor : where to create or modify workflows
My tasks : pending workflows where the user has to perform an action in order to continue their workflow.
My requests : The workflows that the user can initiate are listed here.
My requests > Query request status : to search for all processes started by oneself
Process Search : to search for all processes
Metadata : to add attributes to display in the search tables
Scheduled jobs : shows active workflows pending asynchronous tasks

My requests > Query request status

Description

Displays a table with all the processes initiated by the end-user. The end-user can consult processes detail and perform actions depending on the user permissions. You can visit Self service portal examples page for more information.

Screen overview

Configure Workflow engine : where the workflow engine is configured
Business process definition : where workflows are published
BPM editor : where to create or modify workflows
My tasks : pending workflows where the user has to perform an action in order to continue their workflow.
My requests : The workflows that the user can initiate are listed here.
My requests > Query request status : to search for all processes started by oneself
Process Search : to search for all processes
Metadata : to add attributes to display in the search tables
Scheduled jobs : shows active workflows pending asynchronous tasks

Standard attributes

Identifier: unique process identifier in the system (starts at 1 and increases).
Description: generic process name
Start: date and time the process starts
End: date and time the process ends. A process without end date it is a process in progress
Current task: displays the point in progress on the defined process diagram. Depend on the process status, you could perform some operations or others.
Initiator: the soffid user who started the workflow (this attribute must be added beforehand in the Metadata screen and selected in View)
Created on
Created by
Updated on
Updated by

Actions

The operations to be performed depend on the user permission and the business processes defined with the workflow engine.

You can find documentation about the business processes on BPM Editor Book.

Table

Refresh

Allows you to refresh the processes list with updated data.

Download CSV file

Allows you to download a CSV file with all the information from the list of processes contained in the table.

View

Allows you to add or remove columns to the table.

It is also possible to change the order of the columns.

Process

The actions to perform to each process, depend on the business process definition and the user permissions.

You can find more information about the most commons process actions if you go to Process detail actions

Process search

Description

A process is a series of actions, connected by transitions. An action could be either an automatic action or a manual task. A process is what we commonly refer to as a workflow in Soffid.

Soffid console is concerned about task delegation and workflow management. Any user is able to create new processes or any user can be assigned as an actor for a task belonging to a process.

Process Search page allows users to search process by different criteria, to view the process details and to perform the proper actions depending on the user roles.

In order to view a task, a security constraint must be accomplished. The user must have granted the observer or administrator role on the specific project version or has been assigned as a potential actor of it at some time.

Screen overview

Related objects

Configure Workflow engine : where the workflow engine is configured
Business process definition : where workflows are published
BPM editor : where to create or modify workflows
My tasks : pending workflows where the user has to perform an action in order to continue their workflow.
My requests : The workflows that the user can initiate are listed here.
My requests > Query request status : to search for all processes started by oneself
Process Search : to search for all processes
Metadata : to add attributes to display in the search tables
Scheduled jobs : shows active workflows pending asynchronous tasks

Standard attributes

Table

The search and the view table can be performed by setting certain parameters, which are as follows:

Search text: search by a certain text, as user name or application, etc (only for Quick search)..
Identifier: all the processes have an assigned an identifier.
Start: allows you to establish a date range when the process was started.
End of the process. These filters will be available if you check the Include completed option.
Current task: task in which the workflow is being executed.
Initiator: user who has started the workflow.

Process

Each process has commons attributes and specific attributes depending on the business process definition.

You can find documentation about the business processes on BPM Editor Book

Commons process attributes

Name: shows process name and the versión of the addon you are using.
Process: each proces has an unique identifier

Other process information

Specific process attributes: these attributes depend on the process definition.
Work in progress: details the specific point in which the process and associated tasks are. You can find information about the process ID, the job description for each one of them, the start date and time, and the current status. The users with the proper roles could view the task details, browse and perform actions by clicking on it.
Actions log: summary of all the successive phases through which the process has passed, providing information on the start date and time of the phase, the user (task manager) assigned, and the action that was done.Also when it is defined, the diagram of the workflow is diplayed.
Attachments: in some cases, for example in massive user upload processes using a CSV file, files are attached to the process so that it can be executed. These files can be consulted, by downloading or opening them directly, from this page. Additionally, if needed, it is possible to see the certificates used by the process owner.
Comments: displays the comments added by the user who initializes or performs actions on the process.

Actions

Table

Actions to be performed on the process list:

Search (quick, basic, advanced)	Allows you to query the processes with the indicated parameters.
Download CSV file	Allows you to download a CSV file with the list of processes. You can open the hamburger icon and Download CSV File.
View	Allows you to add or remove columns to the table. It is also possible to change the order of the columns.
"Open task"	By clicking on a record, the task detail will be shown.

Detail

Each process has a specific action defined on the business process definition.

You can find documentation about the business processes on BPM Editor Book

The most commons actions are below:

Close	Allows you to close the process detail page and return to the previous page.
Reload	Allows you to reload all process data with the updated data.
Take ownership	Allows you to take the ownership to approve o deny the process.
Approve	Allows you to approve the process and perform the actions defined for that process.
Deny	Allows you to reject the process.

Work in progress actions

Edit task

Allows you to edit a task by clicking on the record. When you click the task, you will browse to the task detail and it will be allowed to perform actions defined to users with the proper permissions.

Attachments

Download

Allows you to download the available attached files.

My applications

Description

My application is a part of the Identity self-service that allows end-users to start corporate applications and third party applications. Also, the end-user can view and use the shared accounts available for the user defined on the Password vault.

Applications

That option shows to each user, all the corporate and third party applications to which the user can connect and the applications with public access. These applications have to be configured on the Application Access Tree option by an administrator user.

Password vault

My Applications option shows the PasswordVault folder. On the vault folder you can find two kind of folders, one a personal folder and other a shared folder.

Inside the personal folder, you can create your own accounts, those accounts will not be shared with any other user. The shared folders could be used or managed by the owner/manager/SSO users.

Application access tree. to configure the applications
Password vault. : to configure the shared accounts.

Actions

"Folder selection"

When you select a folder, its contents will be displayed on a new page.

"Application selecction"

When you select an application, a new page will open with access to the application depending on its type.

If only access is visible but it is not configured, nothing will happen.

If there is a configuration but you do not have access, you will be notified on screen.

My authentication

Description

This screen groups together the different options available to users when authenticating, especially as a second factor in an MFA login.

Screen overview

My authentication > My OTP devices (addon otp)

Description

My OTP devices are part of a Soffid Self-service portal that allows end-users to access their OTP devices configured.

That option display to each user, all their OTP devices and also allows you to manage those and add new OTP devices.

Soffid Administrator user can configure the available OTP types. For more information, you can visit the OTP settings page.

This option will only be available if the OTP addon is installed in the Soffid console. Visit the Two factor authentication book for more information

Screen overview

Standard attributes

Name: automatic name assigned to the OTP device
Created: created date and time.
Last use: last used date and time.
Type: the type of the OTP device:
- TOTP (Time based HMAC Token)
- HOTP (Event based HMAC Token)
- EMAIL
- SMS
- PIN (Security PIN)
Status: status of the OTP device:
- Created
- Enabled
- Locked
- Disabled
Fails: failed attempts collected when logging in with the OTP device value
Created by
Created on
Modified by
Modified on

Actions

Add new

Allows you to add a new OTP device. To add new OTP devices you need to click the "Add new" button, then Soffid will display a new wizard to config the OTP devices. First of all, you need to select the OTP device Type, once the type is selected, you need to fill in the required fields, which depend on the Type selected. If you select an Event-based or Time-based HMAC Token, you will need to scan the QR code and write the PIN. Finally, you must Apply changes.

Images

Delete OTP device

Allows you to delete one or more OTP devices.

To delete OTP devices first select the devices, then click on the Delete, then Soffid will ask you to confirm or cancel the operation.

View

Allows you to add or remove columns to the table.

It is also possible to change the order of the columns.

My authentication > My certificates and FIDO tokens (addon federation)

Description

My certificates and FIDO tokens are part of the Identity self service that allows end-users to access their OTP devices configured.

This option shows each user all their configured OTP devices, which can be certificates, FIDO tokens, and Soffid authenticators. It also allows you to add new devices or delete existing ones.

Certificates

You can use these *.p12 certificates to add them to your favourite browser and use them as a second factor of authentication.

FIDO tokens

If you or your organisation has FIDO devices, I can register them with Soffid and use them as a second factor of authentication.

Soffid authenticator

Soffid has made the Soffid authenticator app available on the Play Store and the App Store, which will allow you to easily and simply perform two-factor authentication from your mobile device.

Screen overview

Identity providers : to create a Soffid IDP
Soffid authenticator : more information about this option

Standard attributes

Type : there are two available options:
- Certificate.
- FIDO token.
- Soffid Authenticator.
Serial number : internal Soffid id
Description : the description of the OTP device
Last use : date of the last use of this OTP device

Actions

Table

Add new

Allows you to add new object: Certificate, FIDO token or Soffid authenticator.

Soffid will display a new wizard to configure each type of object.

First of all, you need to select the Type, once the type is selected, you need to follow the required steps which depend on the Type selected.

Delete token

Allows you to delete one or more objects.

To delete them first you must select one or more objects, then click on the "Delete" button, then Soffid will ask you to confirm or cancel the operation.

Download CSV file

Allows you to download a CSV file with all the information about the objects.

Add new

Adding a new certificate

Select the "Certificate" type.

Save the *.p12 file in a secure location.

Finish with the "Close" button.

Adding a new FIDO token

Select the "FIDO token" type.

Adding a Soffid authenticator

Select the "Soffid authenticator" type.

Others

IDP for FIDO and authenticator

To add a FIDO token or a Soffid authenticator, you must have a Soffid IDP configured.

My accounts

Description

My Account is a part of the Identity self service that allows end-users to access and manage their personal accounts.

That option displays all personal accounts for each user and allows you to set and/or view the password for each account if they have been enabled by configuration.

The accounts that are displayed are those belonging to Soffid's own systems. For external systems, only accounts belonging to active systems are displayed. If an external system (agent in Soffid) is disabled, the account will not be displayed on this page.

Disabled accounts are displayed, but it is not allowed to set or view the password.

Related objects

Agents : where the target systems are configured
Password policy : where the set password and query password are enabled by configuration, and also there are configured the password plicies when you set a new password.
Users : to view the accounts of a user
Accounts : to list the accounts of a user

Standard attributes

System: target system for which this account has been created (agent in Soffid).
System description: a brief description of the target system.
Name: user account name.
Actions: available actions.
- Set password: to set a new password for the target system.
- Query password: to view the current password assigned to the target system in Soffid.

Actions

Download CSV file

Allows you to download a CSV file with all the information about your accounts.

Set password

Allows you to set a new password for this account. This change will be applied to different target systems.

The new password must comply with the defined password policies.

Query password

Allows you to query and copy the password and the user name.

Soffid chat-bot

Description

This new feature included in Soffid 4 allows you to interact with our AI to request information, or better yet, ask it to apply changes directly in the Console.

This feature is not enabled by default, you must activate a token in order to use it.

The power offered by this new tool is limitless. Our imagination, combined with training in Soffid's documentation and internal structure, enables us to accomplish many tasks.

Screen overview

Network Intelligence : to configure the token to use this feature
Soffid chat-bot : to chat with our IA
Custom scripts : to use the IA

All pages with scripts can use the IA to help you with the scripting

Standard attributes

Chat box : Type your query or request for our AI in the chat box.

Actions

Process

Send the request to our AI for processing.

Others

Access without a token

When attempting to use this feature without having previously enabled it, the console displays the error: No token configured. Please configure it on the network intelligence page.

For more information go to Network intelligence page.

Identity self service

Introduction to Identity self service

What is identity self service?

Screen overview

Brief description of each option

My tasks

My issues

My requests

Process search

My applications

My authentication

My OTP devices

My certificates and FIDO tokens

My accounts

Soffid chat-box (new functionality)

My tasks

Description

Screen overview

Related objects

Standard attributes

Table

Detail

Task tab

Action logs tab

Attachments tab

Comments tab

Actions

Table

Detail

My issues

Description

Screen overview

Related objects

Standard attributes

Standard attributes

Actions

Issues query action

Issue detail

account-created

disconnected-system

discovered-host

discovered-system

duplicated-user

failed-job

enabled-account-on-disabled-user

global-failed-login

integration-errors

locked-account

login-different-country

login-from-new-device

login-not-recognized

otp-failures

pam-violation

password-changed

permissions-granted

risk-increase

robot-login

security-exception

My requests

Description

Screen overview

Related objects

My requests > Query request status

Description

Screen overview

Related objects

Standard attributes

Actions

Table

Process

Process search

Description

Screen overview

Related objects

Standard attributes

Table

Process

Commons process attributes

Other process information

Actions
